SPORTSTER XL CAMS - 515

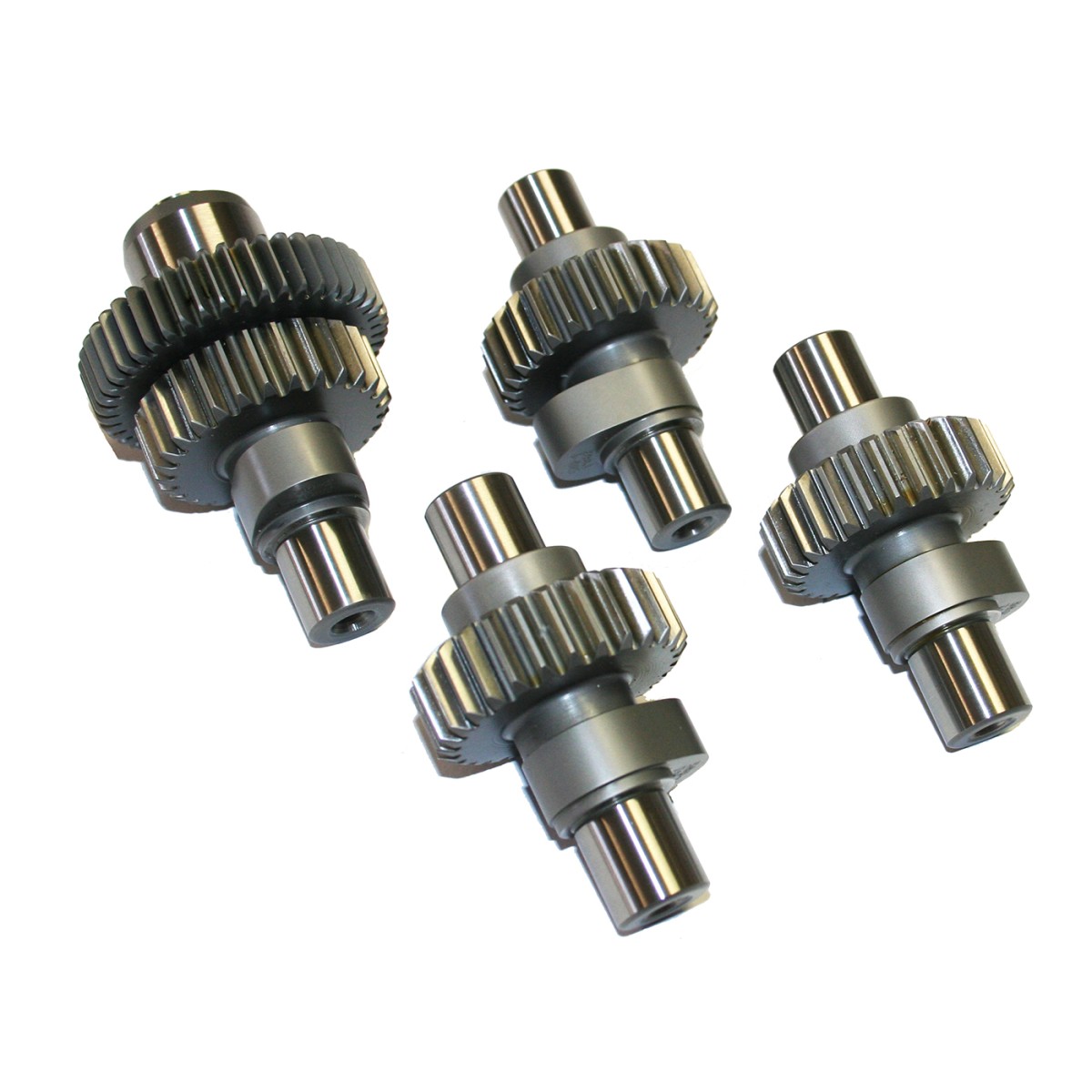

PART # 1370 505/515 Bolt-in REAPER cams for XLs producing a wide power band in stock engines, a great way to take a Sporty to a hot new level of performance. Split lift camshaft with .505 lift on the intake and .515 lift on the exhaust produce a solid power band with top fuel sound. Can be used with stock pushrods and valve-springs, FEULING recommends matching new camshafts with new lifters but not required.

Fits: 00-22 XL and 00-02 Buell as a direct bolt-in replacement for fine pitch pinion gear, cam set also fits 91-99 but requires pinion gear swap using HD # 24047-00 to convert the 91-99 wide pitch pinion gear to a fine pitch setup.

DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES


Valve Lift Open Close Duration @ 53 lift @ TDC Lobe Centerline
Intake .505 11 48 239 .137 108.5
Exhaust .515 53 15 248 .150 109

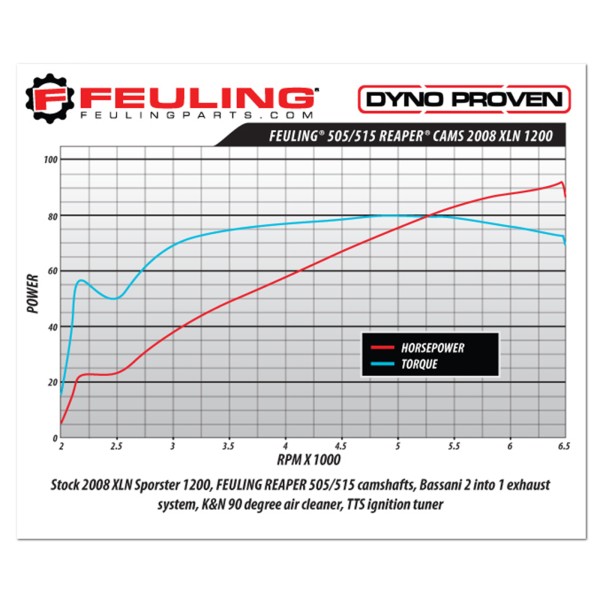

RPM range: 2,100 - 6,800+ Grind: 515 Overlap: 26

FITS:

XL 91-22, 91-99 require fine pitch pinion gear HD #24047-00

COUNTRY OF ORIGIN:

USA

Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.
