HIGH FLOW M8 CAMPLATE - gear or chain drive

HIGH FLOW CAMPLATES FOR MILWAUKEE EIGHT
Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenge return holes from the pump to the camplate and into the engine case. This camplate also matches the oil port holes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine.
Increased and optimized passages, port holes and galleys requiring them to be matched up to a FEULING HIGH FLOW camplate #8017
42% more scavenge volume with matched passages, port sizing and holes to the engine case
46% more oil volume to the crankshaft and connecting rod bearing
15-25 degree cooler engine temperatures and 15-25 cooler oil temperatures.
7075 billet aluminum which is 50% harder and stronger than the factory cast and Feuling OE+ camplates. The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing like properties.
Tighter cam journal bore tolerance for improved cam fitment
Added Cam journal oil groove for cold start up protection and increased cam journal lubrication
Added oil pressure feed holes to front and back of cam journal to prevent excessive thrusting wear
When matched with the Feuling Race Series Oil Pump rear wheel power gains of 2 Horsepower and 2 ft/lbs of Torque are achieved.
Bolts into stock location
Optional FEULING X ARP bolt kit available for the HIGHFLOW camplate #8017 and HP+ or RS oil pump combo. See part #8022, ARP oil pump bolts do not use washers.
Made in the U.S.A.

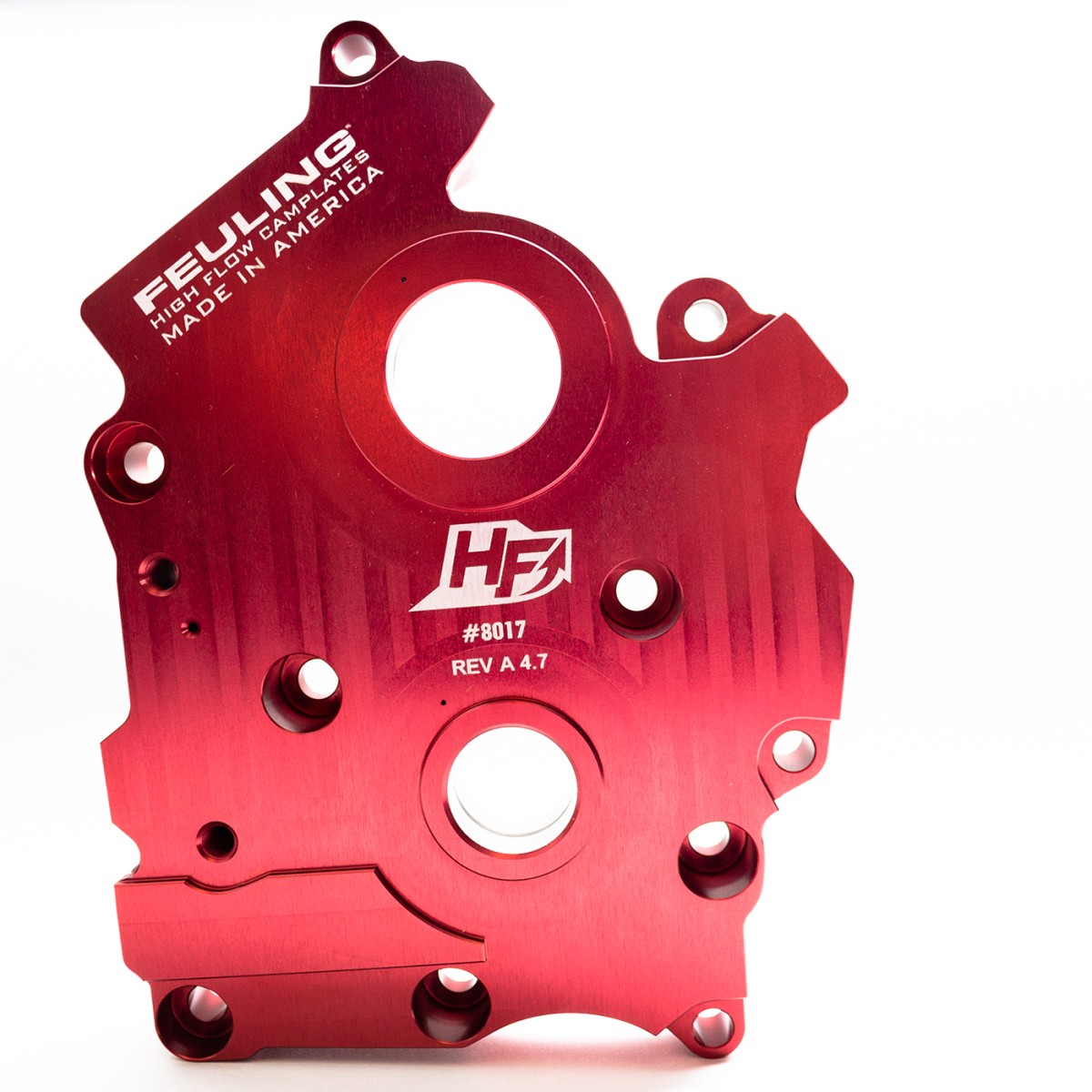

Part # 8017 HIGH FLOW CAMPLATE Fits Milwaukee Eight, Fits: Chain and Gear Drive camshafts for use ONLY with FEULING HP+ OR RACE SERIES oil pumps.
NOTE: Use of Gear Drive camshafts require block off plates - see #8016

FITS:

HIGH FLOW CAMPLATE - gear or chain drive, M-Eight 17-25. MUST use a FEULING HP+ 7018, 7019 or RACE SERIES 7020, 7021 oil pump

COUNTRY OF ORIGIN:

USA

Disclaimer: Qualified Manufacturer Declared Replacement Part means any aftermarket part intended to replace an original equipment emissions related part and which is functionally identical to the original equipment part in all respects which in any way affect emissions (including durability), or a consolidated part, that has been evaluated and declared by the manufacturer to meet this definition and carry this categorization and designation label. This manufacturer has declared in writing that it has documentation, based upon sound engineering judgment, indicating the replacement part does not reduce the effectiveness of any required emission control device and it does not cause the modified vehicle/engine/equipment to exceed applicable emissions standards for that make/model/year fitment(s) advertised.
