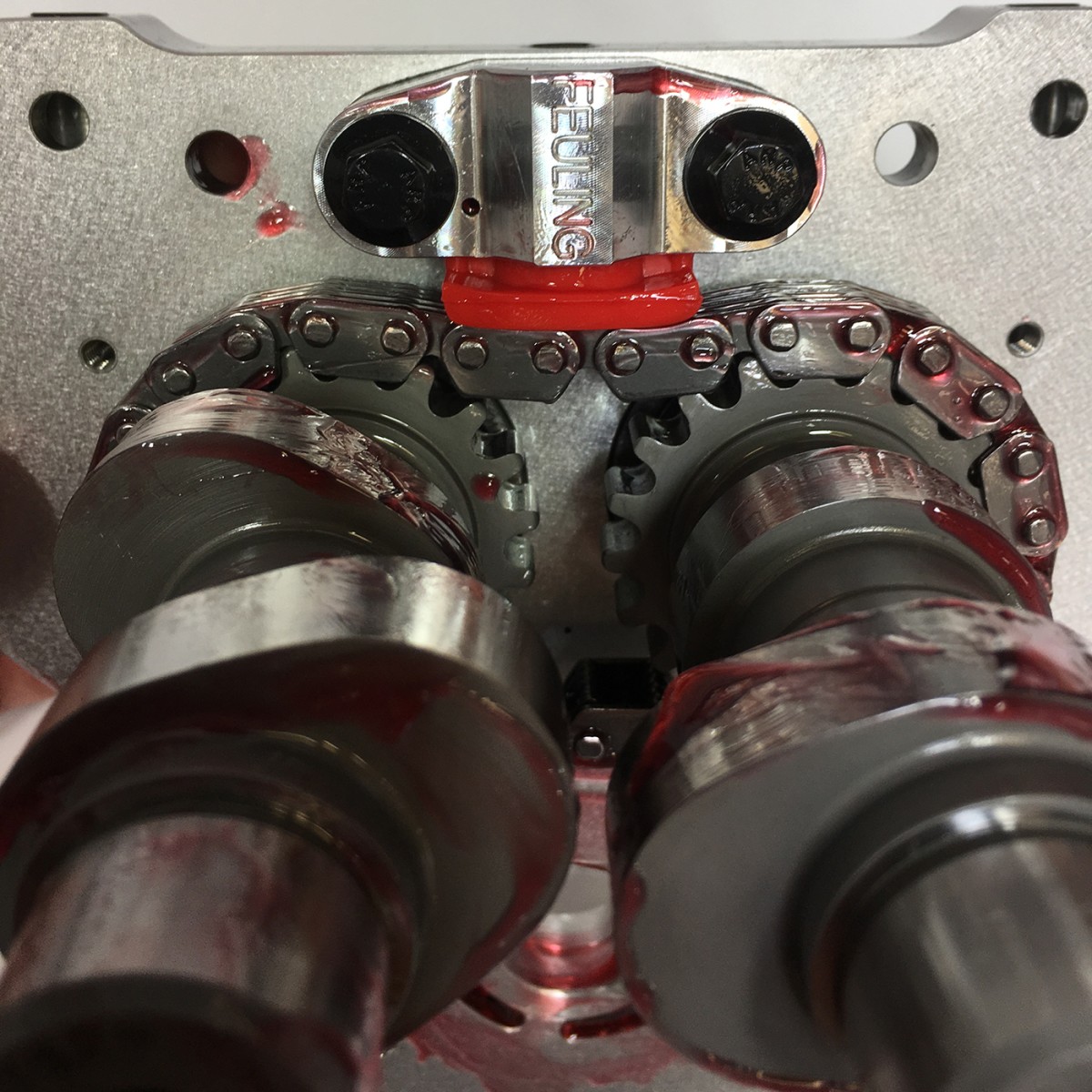

These kits allow engine builders to install or replace the hydraulic cam chain tensioners on stock 07-17 Twin Cams (including 06 Dyna), 99-06 Feuling camchest kits using conversion cams or conversion camplates. Will also work with a combination of factory, SE®, Delkron® or S&S® oiling systems.

For use on '01-'06 Delphi equipped ignition system and carbureted engines w/o cam position sensor with stock style splined drive camshafts and conversion camplate which allows use of hydraulic tensioner system.

Kits #8081 & #8082 are designed to work with:
FEULING® conversion camplate oiling systems: OE+ #7086 (0932-0094), HP+ # 7076 (0932-0071), RS #7077 (0932-0072)

¹ Will NOT work on keyway camshafts
² See conversion style camshafts Feuling #1015, 1016, 1017, 1018, 1019 (Drag #'s: 0925-0671, 0925-0606, 0925-0607, 0925-0608, 0925-0672)

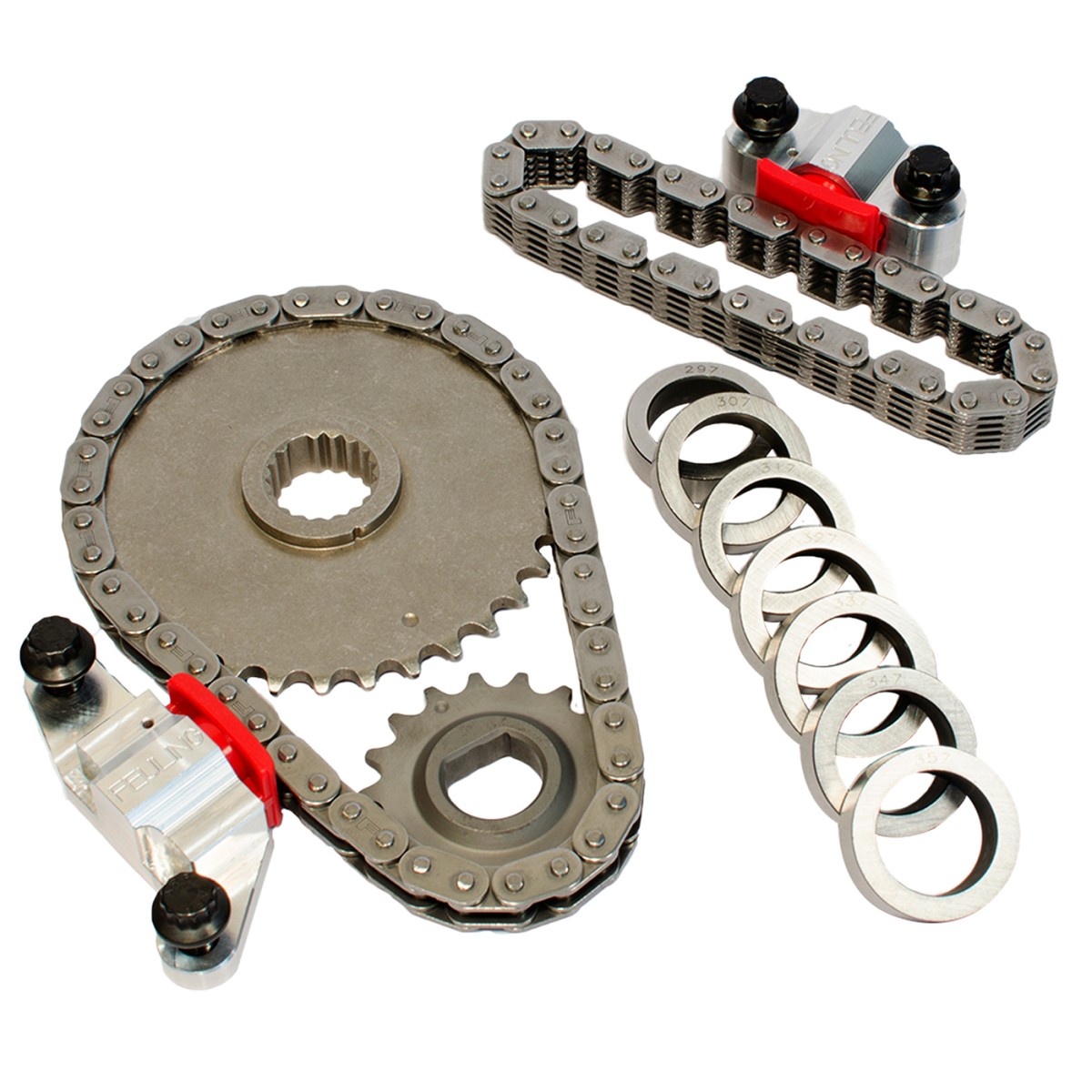

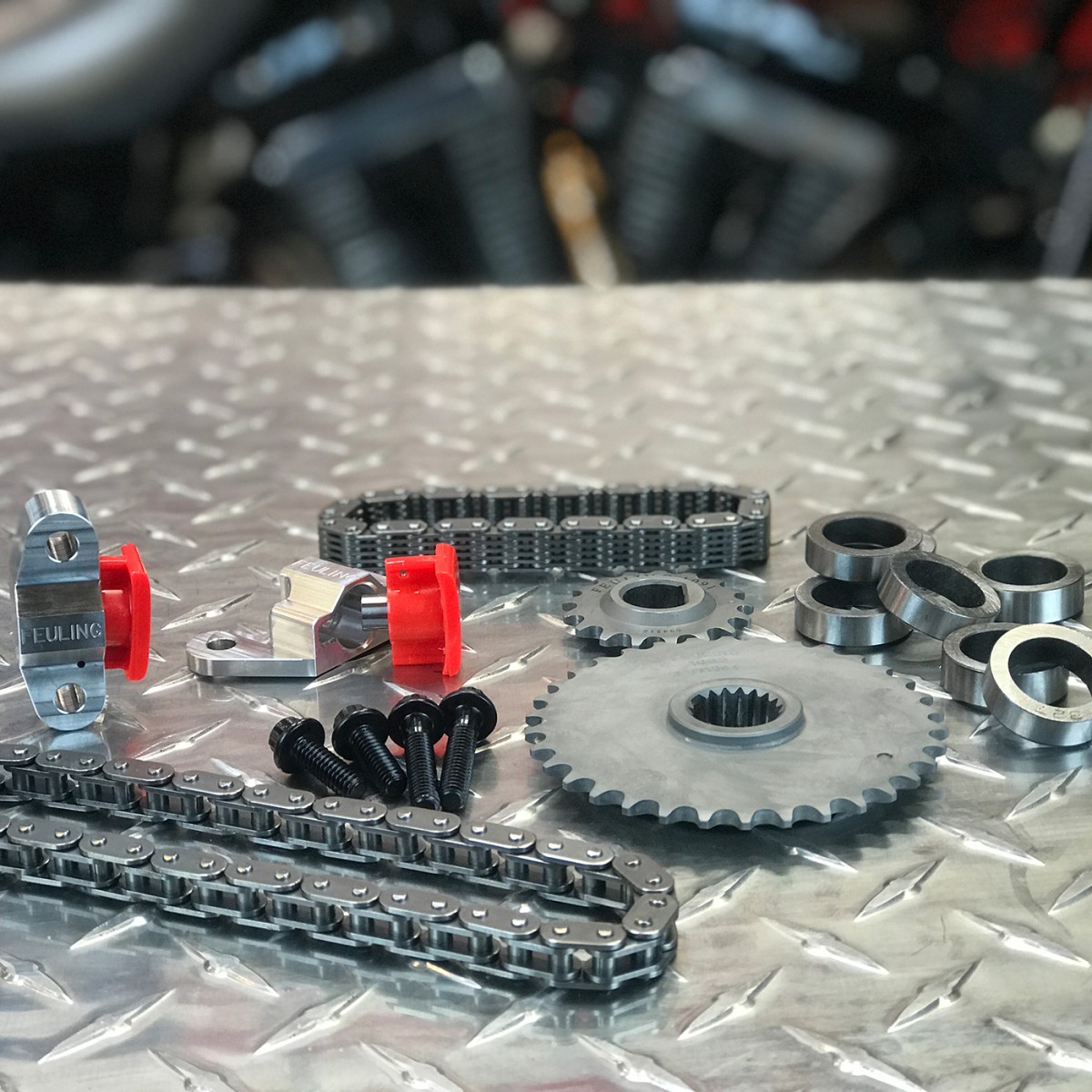

Feuling Part #8081 Includes the following FEULING® components
1 -# 8061 Outer chain 'New style' (HD #25675-06)
1- # 8062 Inner chain 'Old Style' (HD # 25607-99)
1 -# 1091 Outer crank sprocket 17 tooth (HD #25673-06)
1- # 1092 Outer cam sprocket 34 tooth (HD #25728-06)
1 - # 8075 Outer hydraulic tensioner unit (HD #39968-06)
1 - # 8076 Inner hydraulic tensioner unit (HD # 39969-06)
1 - #8040 Cam spacer kit, thicknesses: 0.297", 0.307", 0.317", 0.327", 0.337", 0.347", 0.357". (HD #25285-08)
