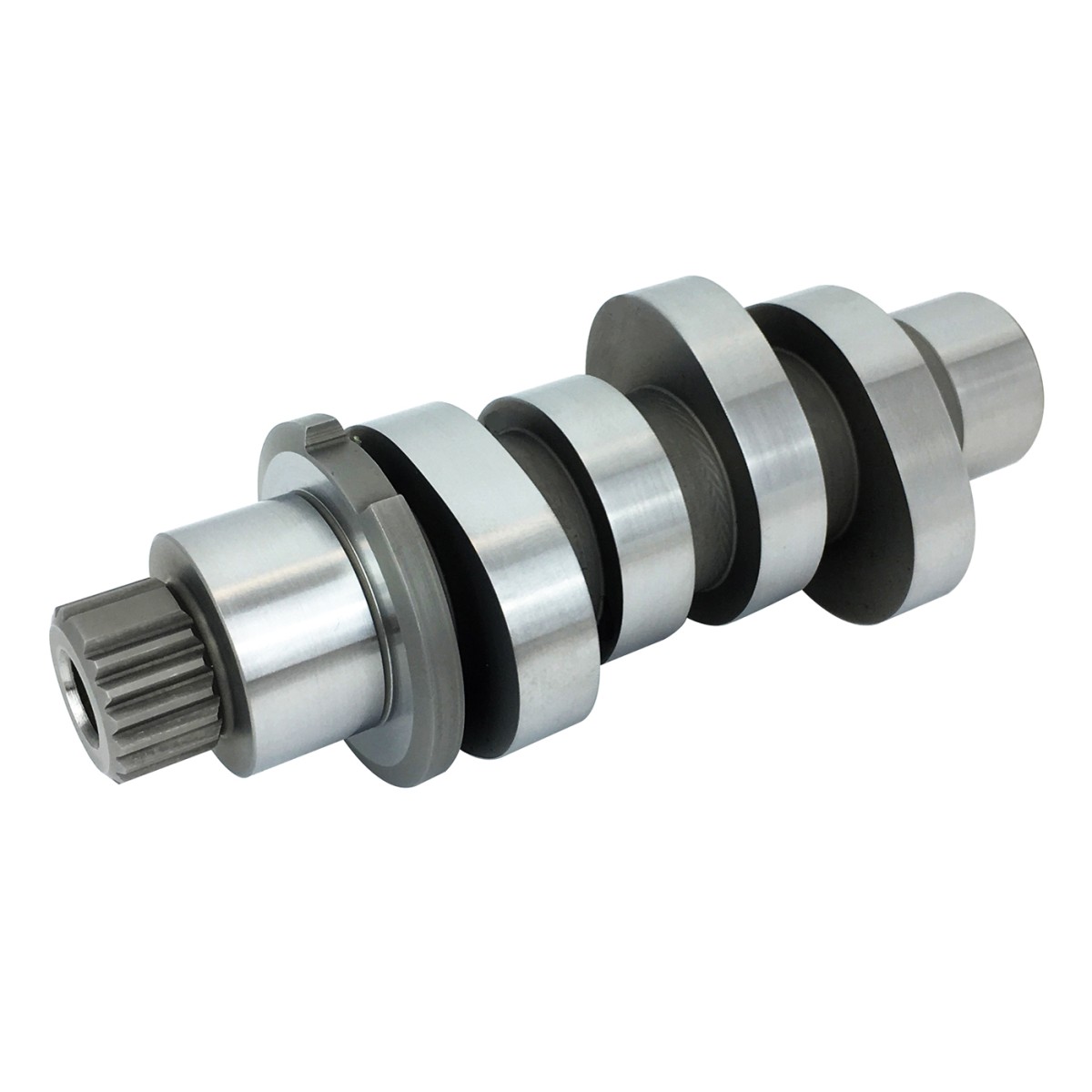

472 CAM - The 472 Reaper is a great all-around camshaft and Feulings go to for 4 1/2 stroke 114 - 117 looking for a little more than our 465 grind and wanting a bolt-in. The 472 has a great bottom end with substantial gains above 2,800 RPM when compared to stock. Responds very well to increased bore and or compression, exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107 or #1108.
Intake: .468 Valve Lift, 8 Open, 25 Close, 213 Duration @ 50, .117 lift @ TDC, 98.5 Lobe Centerline
Exhaust: .472 Valve Lift, 50.7 Open, 7.75 Close, 238 Duration @ 50, .110 lift @ TDC, 111.5 Lobe Centerline
Overlap: 16
*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
EXEMPT FROM EMISSIONS TAMPERING REGULATIONS UNDER CARB EO# D-881-1, 50 State legal CARB compliant: CARB EO# D-881-1
Feuling does not recommend tuning beyond stock emissions standards.
FITS:
Milwaukee Eight 17 - 24 Except VVT, 472 grind chain drive cam, bolt-in
COUNTRY OF ORIGIN:
USA
Disclaimer: 50 State legal CARB compliant: CARB EO# D-881-1
CARB E.O. means the specified Executive Order issued by CARB. An Executive Order constitutes an exemption by CARB from CA Vehicle Code 27156 and 38391, for sale of the part number for the make/model/ year fitment(s) specified in the Executive Order.
Disclaimer: Exempt from emissions tampering regulations under CARB EO# D-881-1 for all 2017-2023 M-Eight engine models.
