HIGH LOAD BEEHIVE SPRING KIT

HIGH LOAD Fit SE Heads

$319.95
In stock
1201

HIGH LOAD BEEHIVE VALVE SPRINGS TC Screamin Eagle Head

  • FEULING HIGH LOAD premium performance BEEHIVE valve springs handle up to 750 lift camshafts. Designed for steep ramped large lift camshafts - These Feuling valve springs are made from premium stress relieved conical ovate wire with a nitrided surface heat treatment, shot-peened surface enhancements along with a Nano Peen polish. They have an extremely high level of fatigue life and are designed to handle the highest demands of performance engines with high lift, steep ramped camshafts. Dyno proven and track tested.

    FEULING BEEHIVE valve springs use a much smaller and lighter weight retainer which drastically reduces the valve weight creating a much quicker revving and smoother motion than comparable dual valve springs.
    FEULING HIGH LOAD springs allow up to 750 lift cams, no rocker box clearancing required.
    Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics!
    Available for 5/16 and 7mm valves
    FEULING BEEHIVE valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.

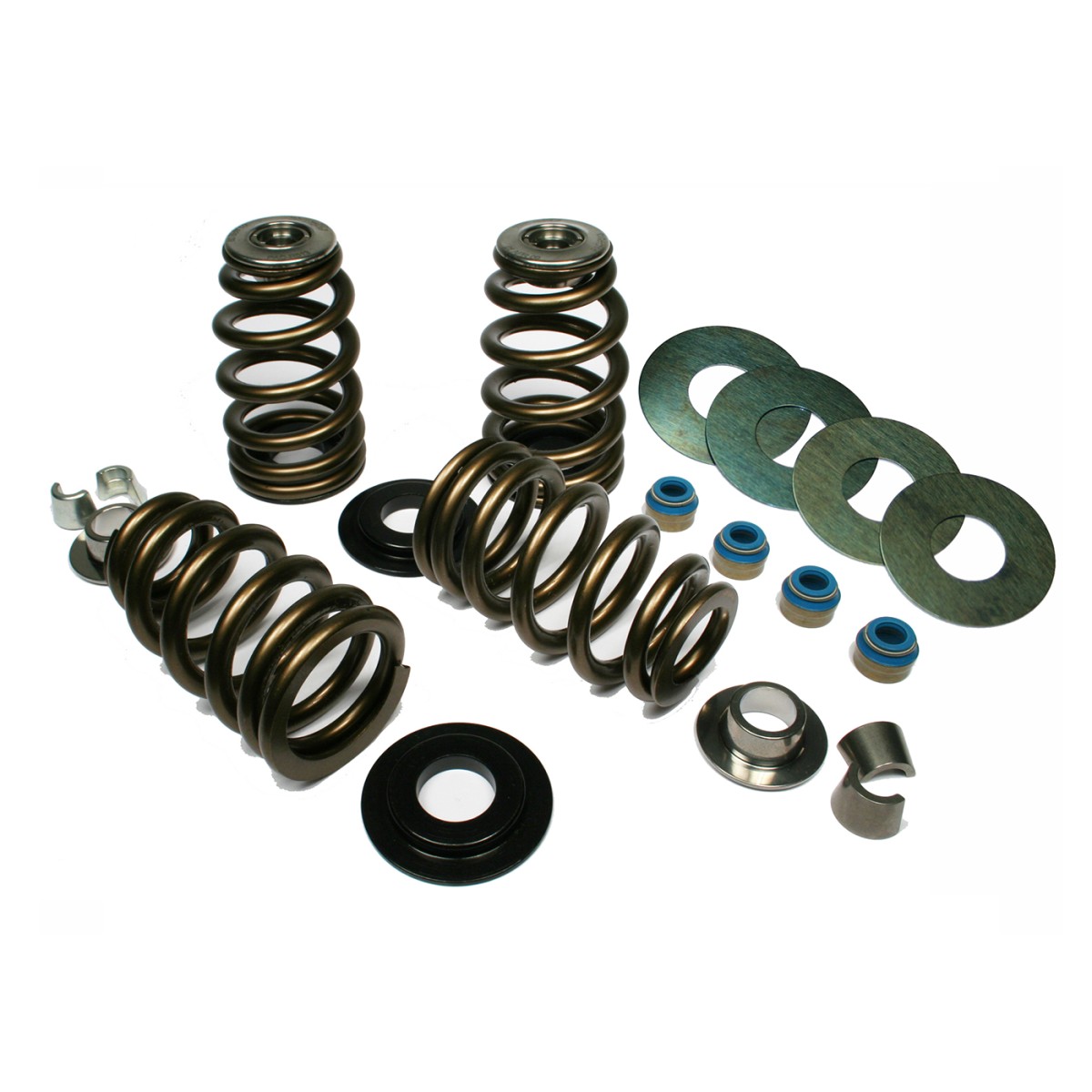

    Kits include: FEULING HIGH LOAD BEEHIVE valve springs, lightweight 10 DegreeTitanium retainers manufactured from Ti-17 alloy and micropolished for enhanced fatigue life, machined heat treated chrome moly spring seats, seat shims and valve locks and a set of premium Viton valve seals equipped with a spring loaded valve stem wiper system.
    Dont get stung by inferior valve springs!
    Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Fit up to 750 Lift Camshafts

    SEAT Lbs. / INSTALLED HEIGHT
    217 Lbs @ 1.789 (0.574 Lift)
    215 Lbs @ 1.800 (0.585 Lift)
    208 Lbs.@ 1.819 (0.604 Lift)
    200 Lbs @ 1.845 (0.630 Lift)
    185 Lbs @ 1.900 (0.685 Lift)
    170 Lbs @ 1.935 (0.720 Lift)
    415 Lbs @ 1.215 OPEN HEIGHT
    Coil Bind @ 1.125

    DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES


    FITS:

    Fits TC Screamin Eagle Heads - Fits SE heads with 5/16 valve stems with std keeper grooves and 0.530 diameter valve guides., 200+ Lbs Springs, Ti Retainers, Seats, Seals, Keepers, seat shims


    COUNTRY OF ORIGIN:

    USA

    Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.

  • Our Dealers / Distributors Part #
    Drag Specialties 0926-1469
    Parts Canada Development Co 0926-1469
    Parts Europe 0926-1469
    Rollies Speed Shop FE-1201
    Sundance Enterprises 1201
    Tucker Rocky - Bikers Choice 481852
