MILWAUKEE EIGHT RACE SERIES CAM KIT

465 Chain Drive Cam, RACE SERIES Lifters, Install kit, 50 State legal CARB compliant: CARB EO# D-881-1

$639.95
In stock
1453

465 REAPER M8 RACE SERIES Camshaft kit

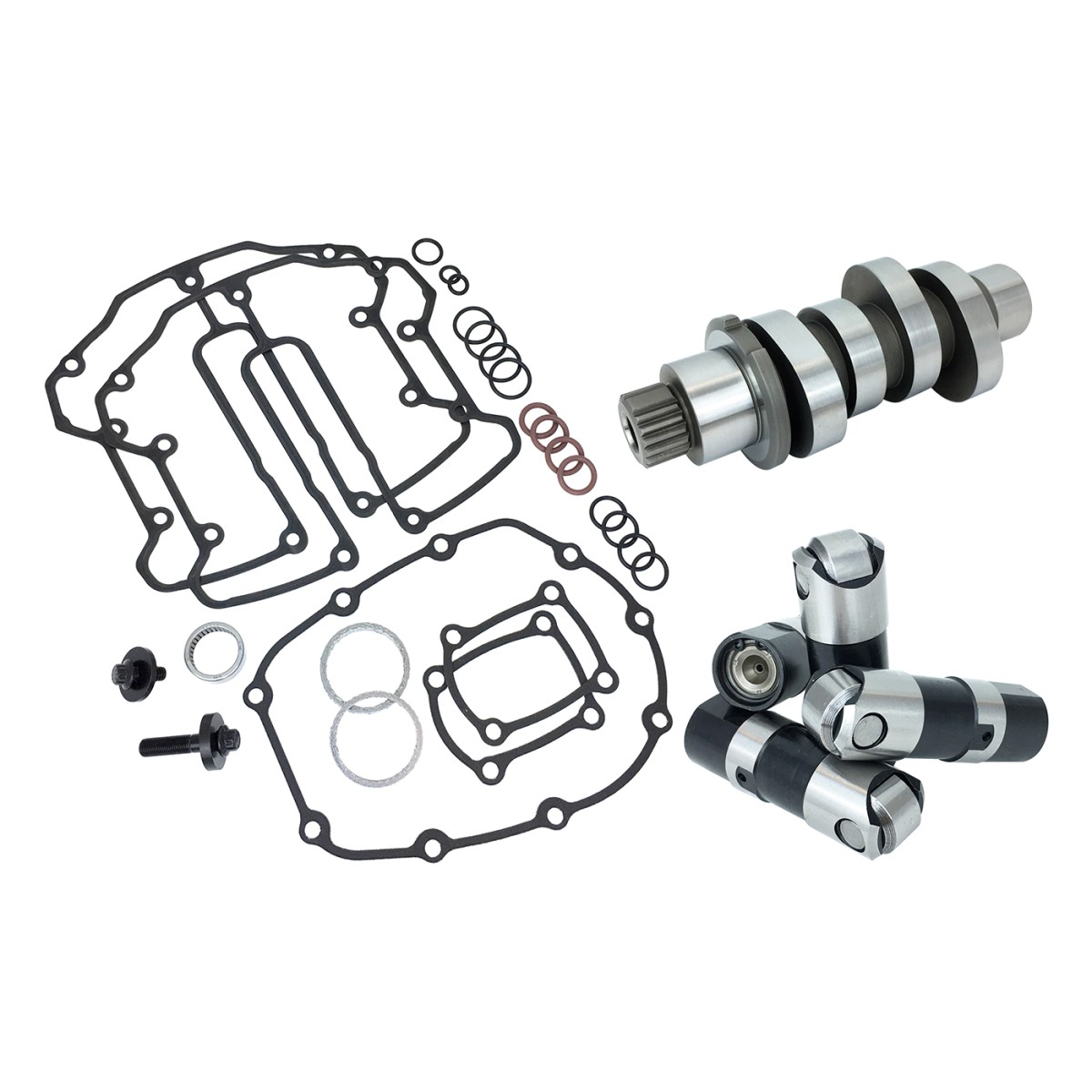

  • FEULING camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ 0.165 wall one piece pushrods - see # 4087

    Feuling fastener kit #3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

    HP+ kits come with HP+ lifters and RACE SERIES kits come with RACE SERIES lifters

    465 CAM - The 465 Reaper is an accelerator, producing solid bottom end performance with substantial gains above 2,800 RPM when compared to stock. This direct bolt in replacement for Milwaukee Eight engines can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or performance exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107. This cam will also respond well with increased bore and or compression.

    Cam Part # 1343 RPM range 1,850 - 5,950. Grind: 465

    Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
    Intake .445 4 BTDC 23 ABDC 207 .100 99.5
    Exhaust .465 50 BBDC 6 ATDC 236 .100 112
    RPM range: 1,850 - 5,950 Grind: 465 Overlap: 10

    RACE SERIES hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange.

    *Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

    EXEMPT FROM EMISSIONS TAMPERING REGULATIONS UNDER CARB EO# D-881-1, 50 State legal CARB compliant: CARB EO# D-881-1
    Feuling does not recommend tuning beyond stock emissions standards.


    FITS:

    Milwaukee Eight 17-24 Except VVT, RACE SERIES 465 CAM KIT - chain drive


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1343, 2030, 4017

    Disclaimer: 50 State legal CARB compliant: CARB EO# D-881-1 CARB E.O. means the specified Executive Order issued by CARB. An Executive Order constitutes an exemption by CARB from CA Vehicle Code 27156 and 38391, for sale of the part number for the make/model/ year fitment(s) specified in the Executive Order. Disclaimer: Exempt from emissions tampering regulations under CARB EO# D-881-1 for all 2017-2023 M-Eight engine models.

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-1177
    Neo Factory 021774
    Parts Canada Development Co 0925-1177
    Parts Europe 0925-1177
