RACE SERIES SHORT TRAVEL LIFTERS

Short Travel Hydraulic: Oversize +.001 OD

$299.95
In stock
4018ST

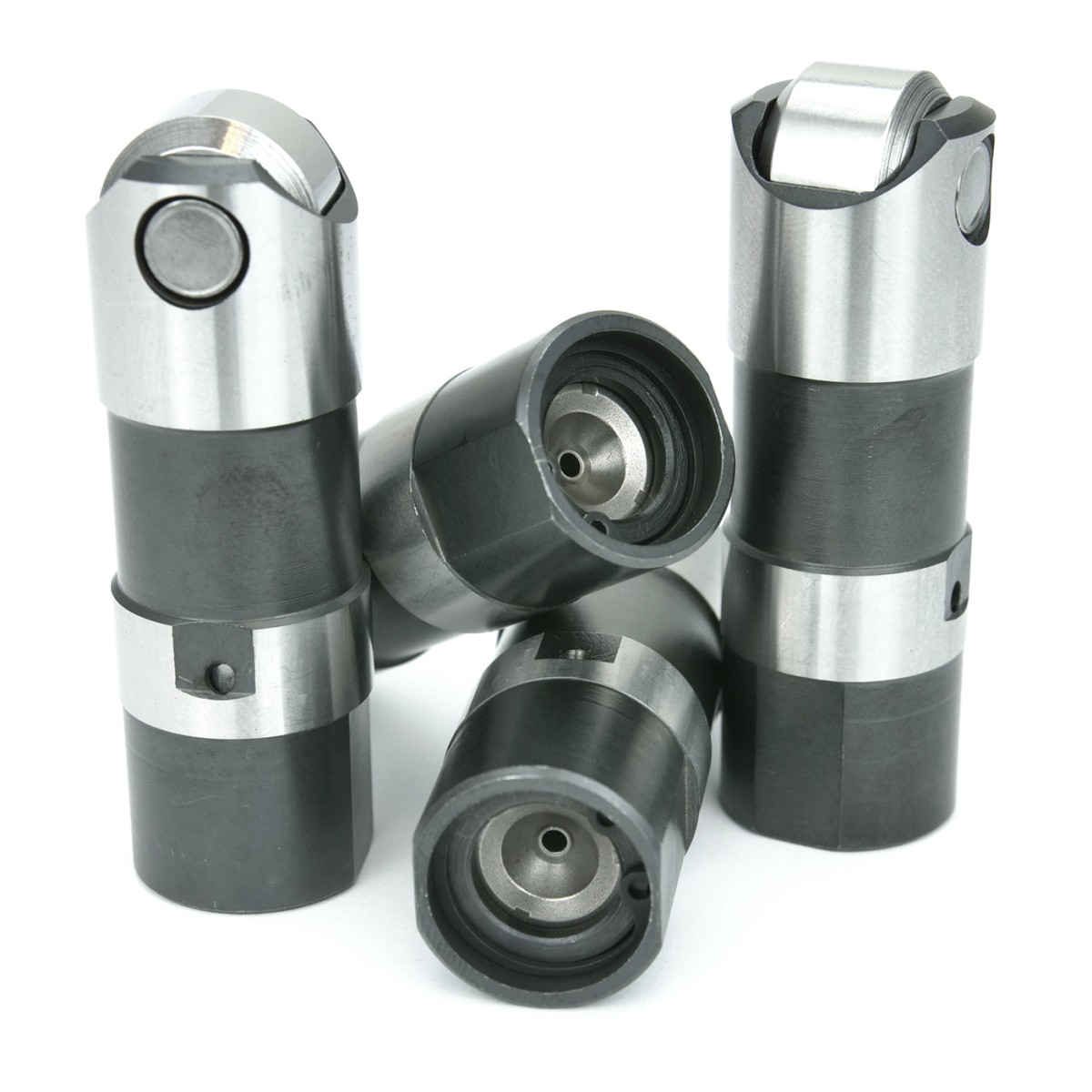

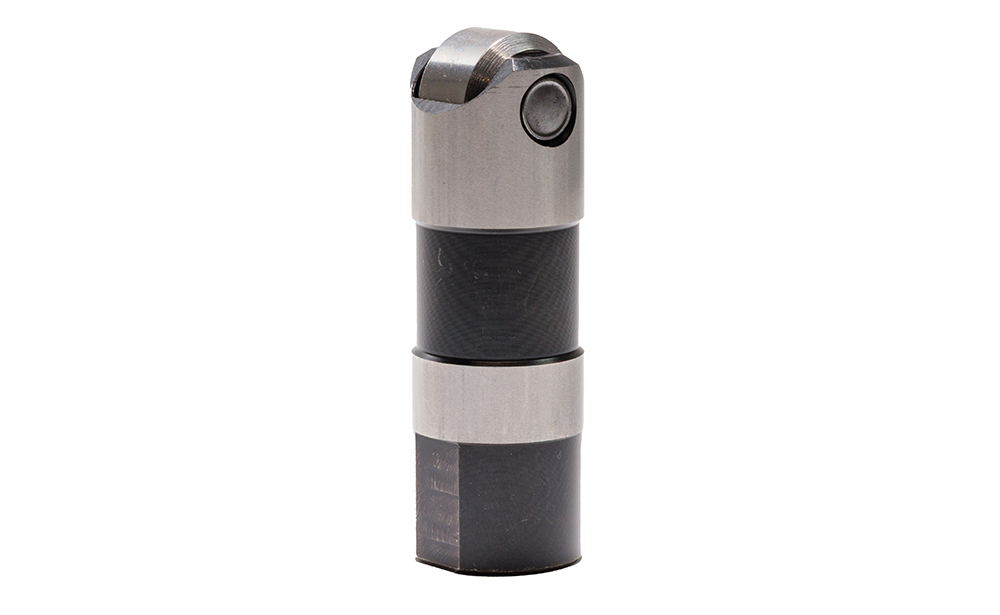

SHORT TRAVEL HYDRAULIC ROLLER LIFTERS, Oversized OD(0.843 - 0.8435), M-EIGHT 17-24

  • FEULING Oversized Dia. (0.843 - 0.8435) SHORT travel hydraulic lifters, M-EIGHT engines

    New revolutionary design with 0.115 of total travel vs. a full travel lifter with 0.200. These hydraulic lifters will increase RPM by decreasing valve float and valve-train harmonics while maintaining a quiet engine. The travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes.

    NOTE: when oil aeration is present inside the lifter, the pushrod seat drops when the lifter rolls onto the front cam lobe ramp after squeezing the aeration down thus creating a noisy poor performing lifter.

    Feuling short travel lifters should be set with 0.065 - 0.070 of pre-load and with the normal engine growth from heat will put the operating lifter pre load at or around half travel.

    Machined from a steel body and designed to exceed the needs of large lift camshafts and higher valve spring pressures with a slower bleed down rate. RACE SERIES lifters maintain proper oil flow to the top end, increase engine RPM, valve-train stability, decreasing valve float promoting maximum valve lift.

    Feuling recommends Race Series lifters for engines running higher than 185 Lbs. valve spring seat pressure. FEULING recommends the use of a high volume oil pump which will result in quieter, better performing lifters. Race Series lifters are compatible with either FEULING HP+ or Race Series oil pumps and are designed for use with both street and strip engines. Spin-Tron dyno developed and track proven, Made in the USA.

    Better Performance!
    Quieter running engine!
    Stock replacement to full out Drag race
    Adjust FEULING SHORT TRAVEL lifters with 0.065 - 0.070 of pre load on the lifter.
    Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction
    Cold forged extra long piston, precision ground and fitted for controlled leak down and pump up
    High flow disc style quick reacting check valve for better reaction at higher RPM.
    Available in oversized diameters - Case Savers!, Ideal side clearance is 0.001
    Recommended for both strip and performance street engines
    Sold in sets of 4
    Made in the U.S.A.



    *FEULING RECOMMENDS PUMPING UP EACH LIFTER BY HAND PRIOR TO INSTALLATION, TO REMOVE ALL AIR AND PROVIDE A FULLY PUMPED UP LIFTER. USE OF A THIN WEIGHT OIL LIKE ATF IN A SQUIRT CAN WORKS WELL.


    FITS:

    Milwaukee Eight 17-24


    COUNTRY OF ORIGIN:

    USA
