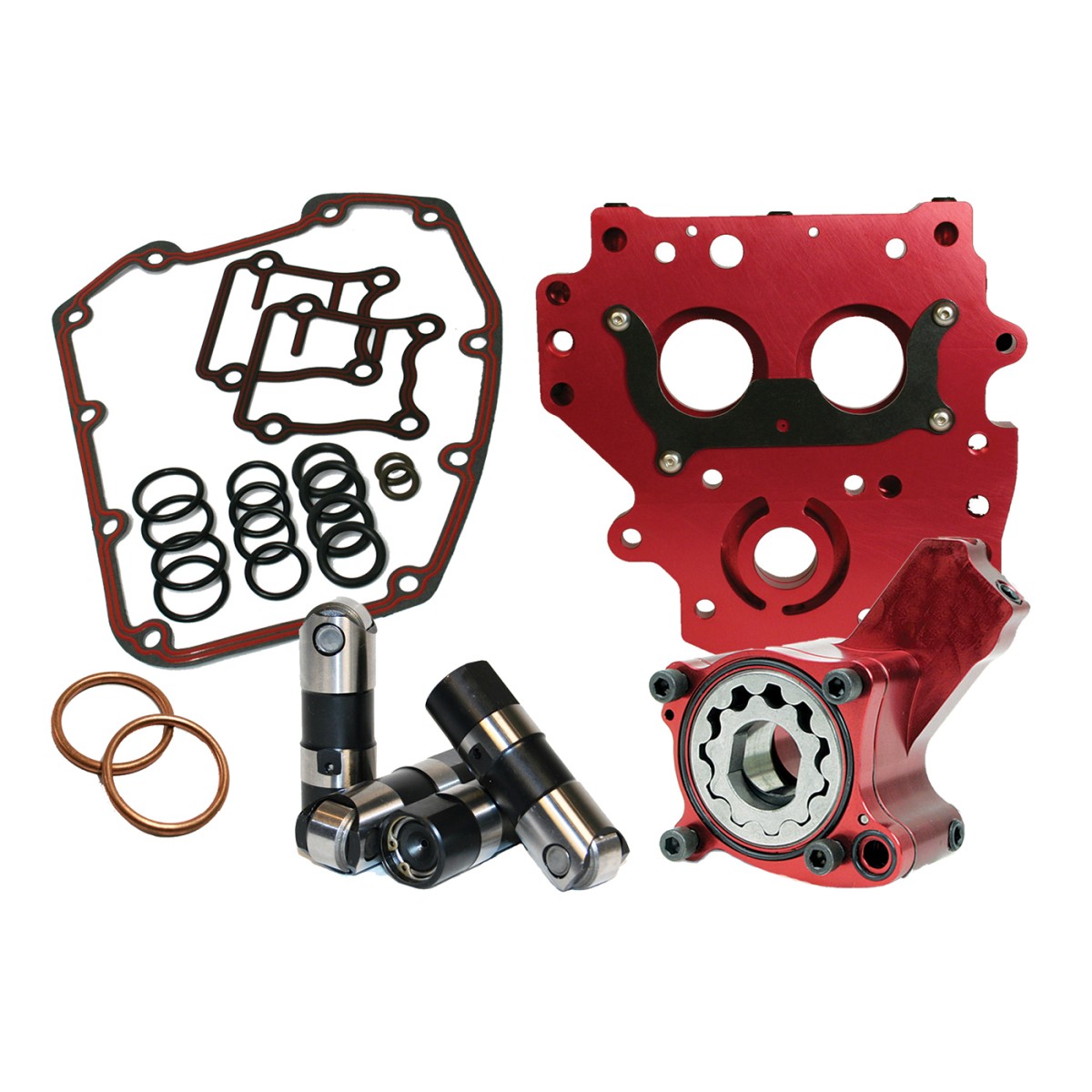

RACE SERIES OILING SYSTEM

Gear drive

$999.95
In stock
7072

RACE SERIES OILING SYSTEM, Gear drive, TC 99-06 Except 06 Dyna

  • Oil is the Life Blood of your Engine!
    FEULING oiling system kits combine all the needed components to finish your TC engines oiling system under 1 Part #, available in HP+ or RACE SERIES kits. FEULING oiling system kits increase oil pressure, oil volume, engine oil flow and return oil scavenging, eliminating wet sumping and oily air cleaners. Test results show 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure and quieter smoother engine operation. Results also show a substantial increase of oil pressure and 3 H.P. and 4 Ft. Lbs of T.Q to the rear wheel.

    -Both HP+ and RACE SERIES kits include FEULINGS HIGH FLOW billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory, SE and other aftermarket camplates. FEULING increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the camplate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings.

    -HP+ SERIES Kits include a billet 6061 aluminum high volume oil pump, FEULING HIGH FLOW camplate, HP+ Hydraulic roller lifters, gaskets and O-ring kit.

    -RACE SERIES Kits include a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature. RACE SERIES hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts. Kits include a RACE SERIES oil pump, RACE SERIES lifters, HIGH FLOW camplate, gaskets and O-rings.

    CONVERSION CAMPLATE Kits #7076 & #7077 utilize the early style 99-06 camshafts and upgrade the cam chain system to use the late style 07-17 hydraulic tensioner system. Factory sprockets, tensioners, chain and hardware purchased separately.


    #7072³ 99-06 Except 06 Dyna, Race Series - Gear Drive (Part #s: 2050, 4050, 7050, 8000)
    ³ Includes bearing retainer plate & hardware


    FITS:

    TC 99-06 Except 06 Dyna, Gear Drive, Includes Gasket kit #2050, RACE SERIES Lifters #4050, RACE SERIES Oil Pump #7050 & Anodized Camplate #8000


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    2050, 4050, 7050, 8000, 8001

  • Our Dealers / Distributors Part #
    J&P Cycles 505-526
    Drag Specialties 0932-0028
    Neo Factory 005923
    Parts Canada Development Co 0932-0028
    Parts Europe 0932-0028
    Rollies Speed Shop FE-7072
    Sundance Enterprises 7072
    Tucker Rocky - Bikers Choice 495422
    Western Power Sports 811-07072
