HIGH FLOW CAMPLATE - gear drive

TC 99-06 Except 06 Dyna, Gear Drive

$359.95
In stock
8000

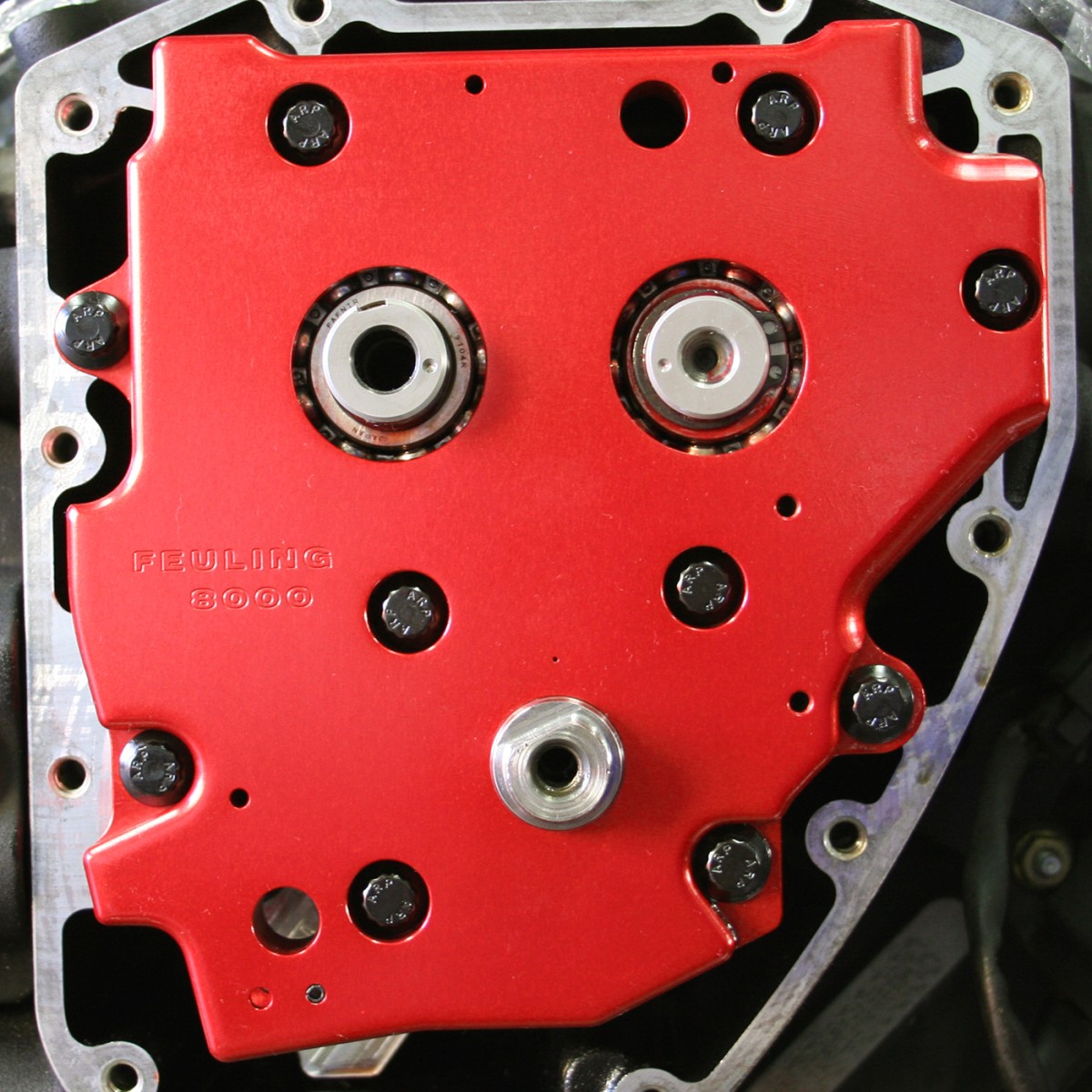

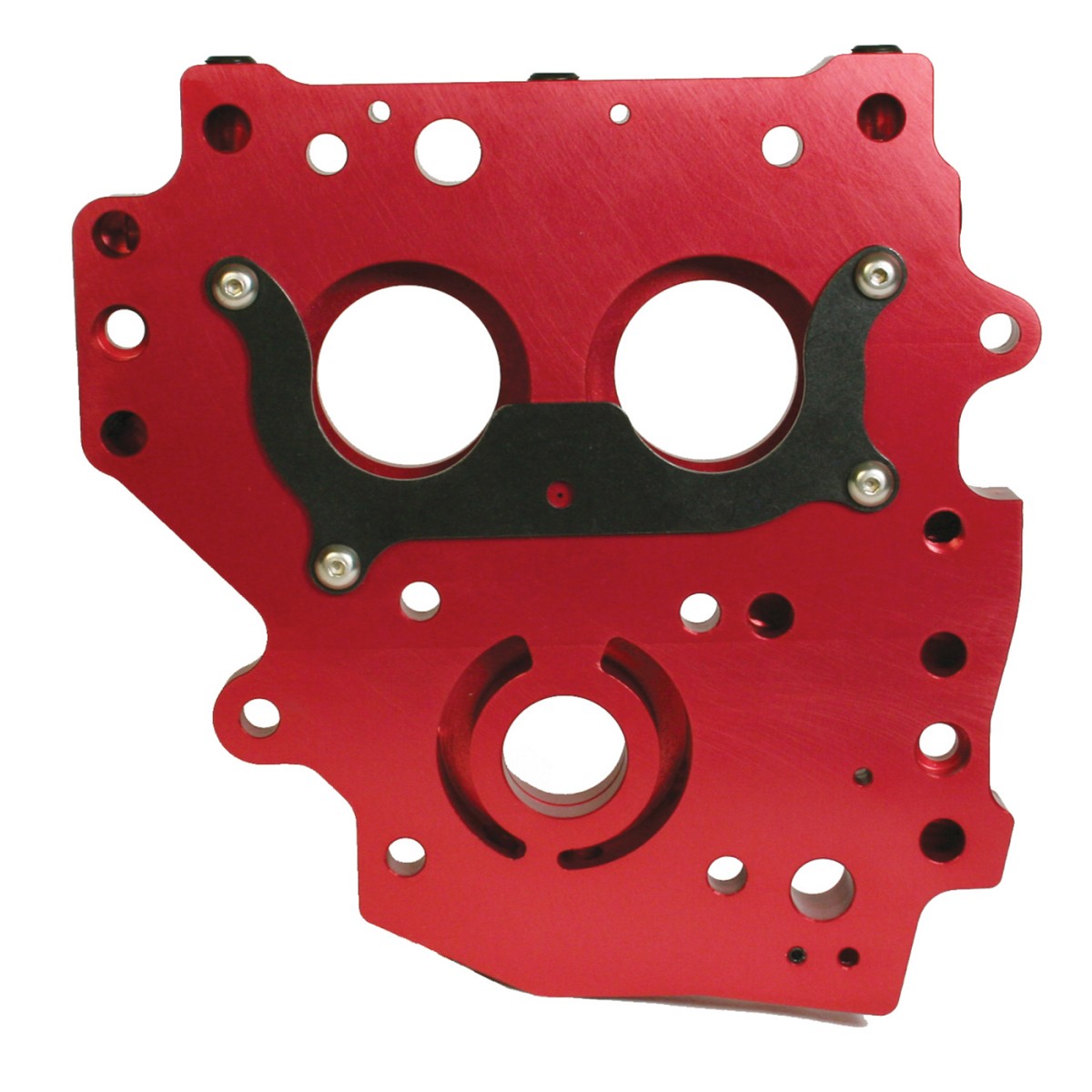

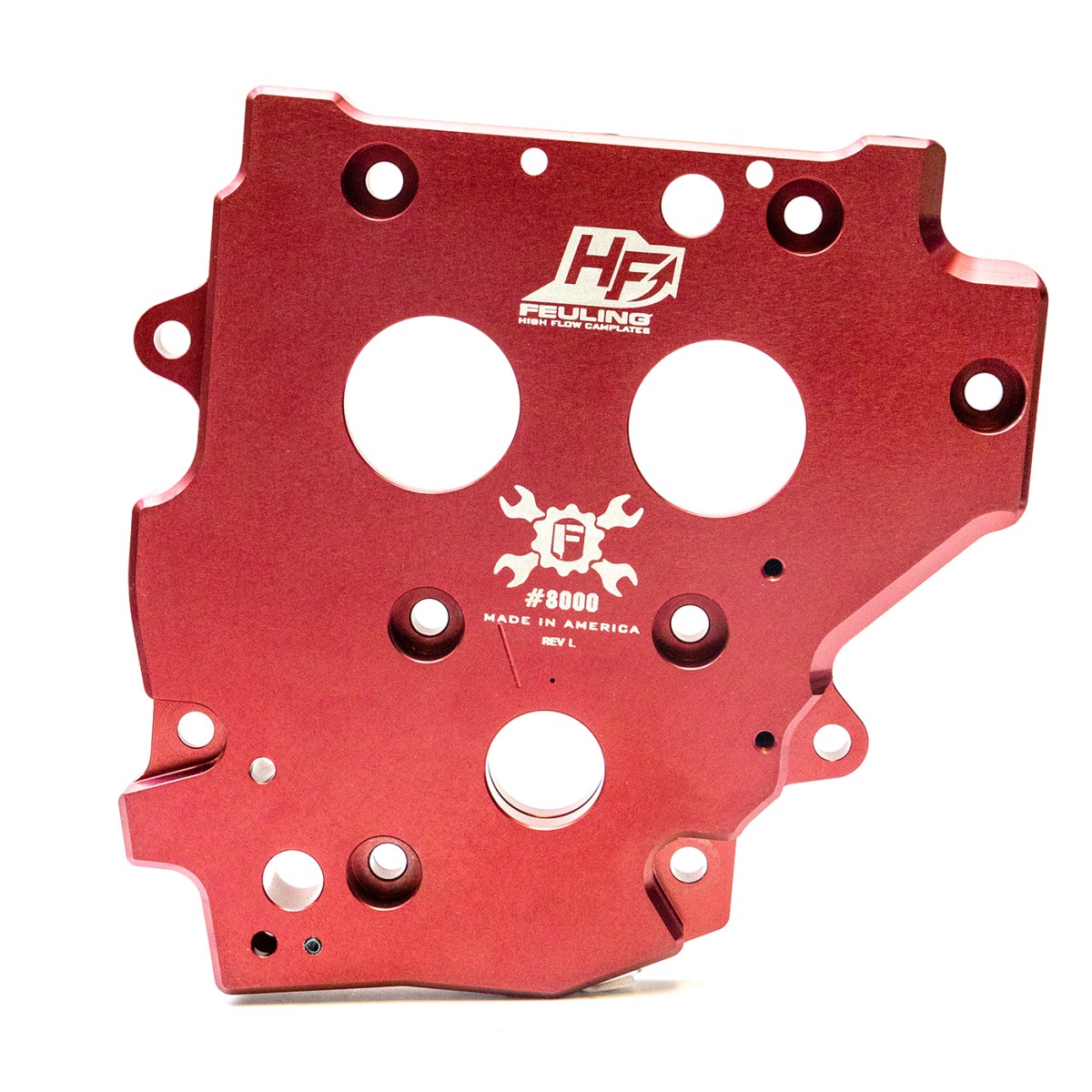

HIGH FLOW CAMPLATE - Gear Drive, TC 99-06 Except 06 Dyna

  • FEULING HIGH FLOW camplates for TC engines increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the camplate to the port holes in the engine case increasing engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings resulting in 25-35 degree cooler engine temperatures.
    Made from 7075 billet aluminum which 50% harder and stronger than the factory, SE and other aftermarket camplates. The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing like properties.
    FEULING camplates are blue printed and matched to the Feuling oil pumps, which allow the Twin Cam engine to take full advantage of the increased volume from the high flow oil pumps resulting in cooler quieter engine operation.
    Tighter cam bearing bore tolerance for improved press fit
    Camplates are pressure tested & pressure relief valve and spring are pre-set and designed for the increased volume and pressure, eliminating the need to stretch the spring or use a shim.
    When matched with the Feuling Race Series Oil Pump rear wheel power gains of 3 Horsepower and 4 ft/lbs of Torque are achieved.
    For use ONLY with the Feuling oil pumps
    Bolts into stock location
    Made in the U.S.A.

    Part # 8000 CAMPLATE Gear Drive TC 99 - 06, Except 06 Dyna
    Includes military spec hard anodized, bearing retainer plate & hardware, For use ONLY with FEULING oil pumps #7000 & 7050


    FITS:

    TC 99-06 Except 06 Dyna, Gear Drive, Requires FEULING oil pump #7000 or #7050, Fits both chain drive or gear drive camshafts, Billet 7075, drops engine temps 20-35 degrees cooler than Screamin Eagle or other aftermarket camplates


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    8001

  • Our Dealers / Distributors Part #
    Custom Chrome - USA, A Division of DAE-IL USA, Inc. 622151
    J&P Cycles 433-800
    Drag Specialties 0920-0006
    Neo Factory 005925
    Parts Canada Development Co 0920-0006
    Parts Europe 0920-0006
    Rivera Primo 3040-0300
    Rollies Speed Shop FE-8000
    Sundance Enterprises 8000
    Tucker Rocky - Bikers Choice 481800
    Zippers 672-800
    Zodiac International B.V. 741380
