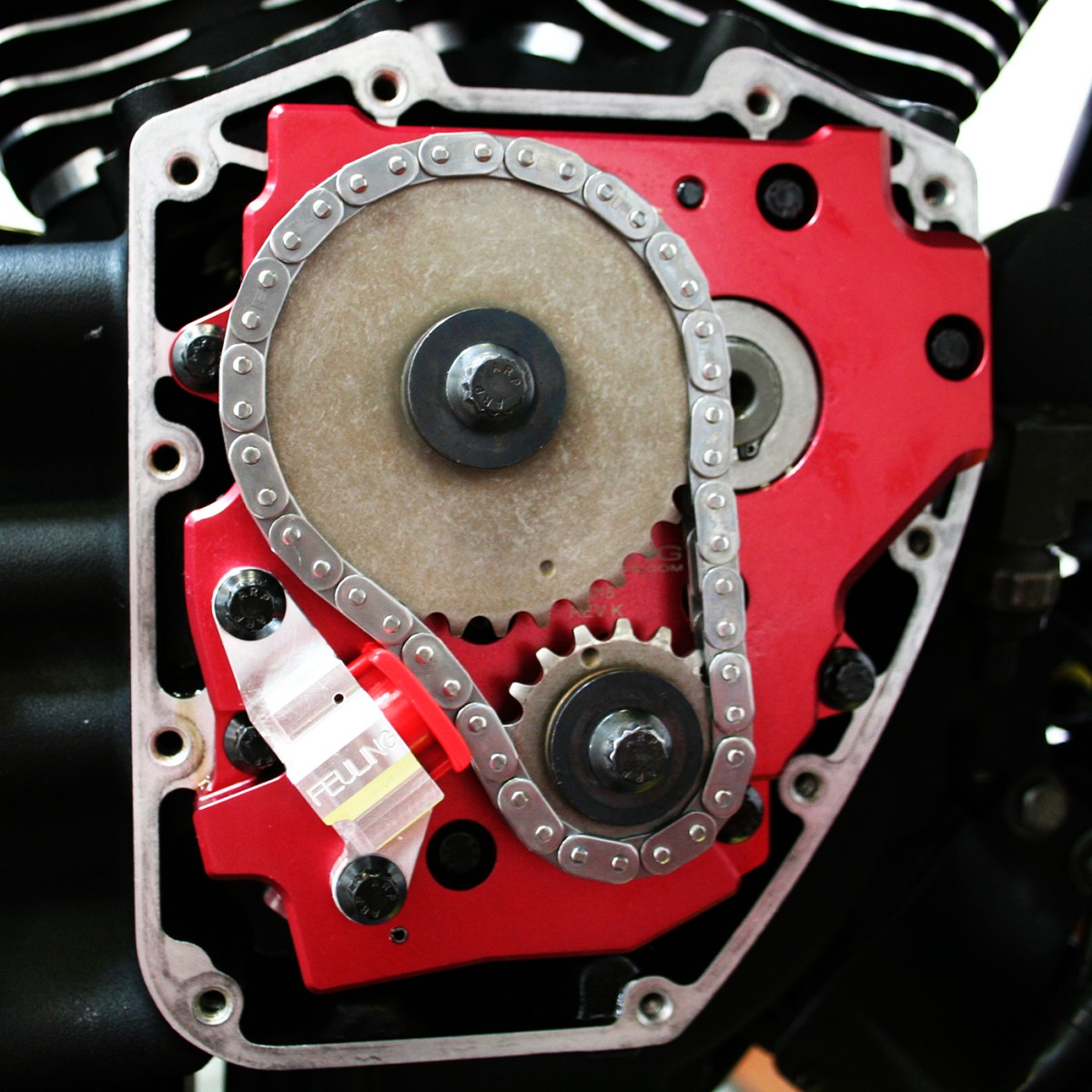

These kits allow engine builders to install or replace the hydraulic cam chain tensioners on stock 07-17 Twin Cams (including 06 Dyna), 99-06 Feuling camchest kits using conversion cams or conversion camplates. Will also work with a combination of factory, SE, Delkron or S&S oiling systems.
For use as stock replacements on 07-17 Twincam (Including 06 dyna). Also works with conversion camshafts when updating 01-06 Delphi ignition system & carbureted engines w/o cam position sensor to the hydraulic cam chain tensioner system. Requires an 07-17 style oiling system - See FEULING oiling systems
Kits
#8080 & #8083 are designed to work with:
FEULING conversion camchest kits: FEULING # 7220, 7220P, 7224, 7224P, 7221, 7221P, 7222, 7222P, 7225, 7225P, 7225ST, 7223, 7223P, 7223ST (Drag # 0925-1289, 0925-1393, 0925-1293, 0925-1399, 0925-1290, 0925-1394, 0925-1291, 0925-1395, 0925-1396, 0925-1294, 0925-1400, 0925-1401, 0925-1292, 0925-1397, 0925-1398)
FEULING conversion camshafts: Feuling #1015, 1016, 1017, 1018, 1019 (Drag #s: 0925-0671, 0925-0606, 0925-0607, 0925-0608, 0925-0672)
FEULING oiling systems: OE+ #7084, HP+ #7074, RS #7075 (Drag # 0932-0093, 0932-0029, 0932-0030).

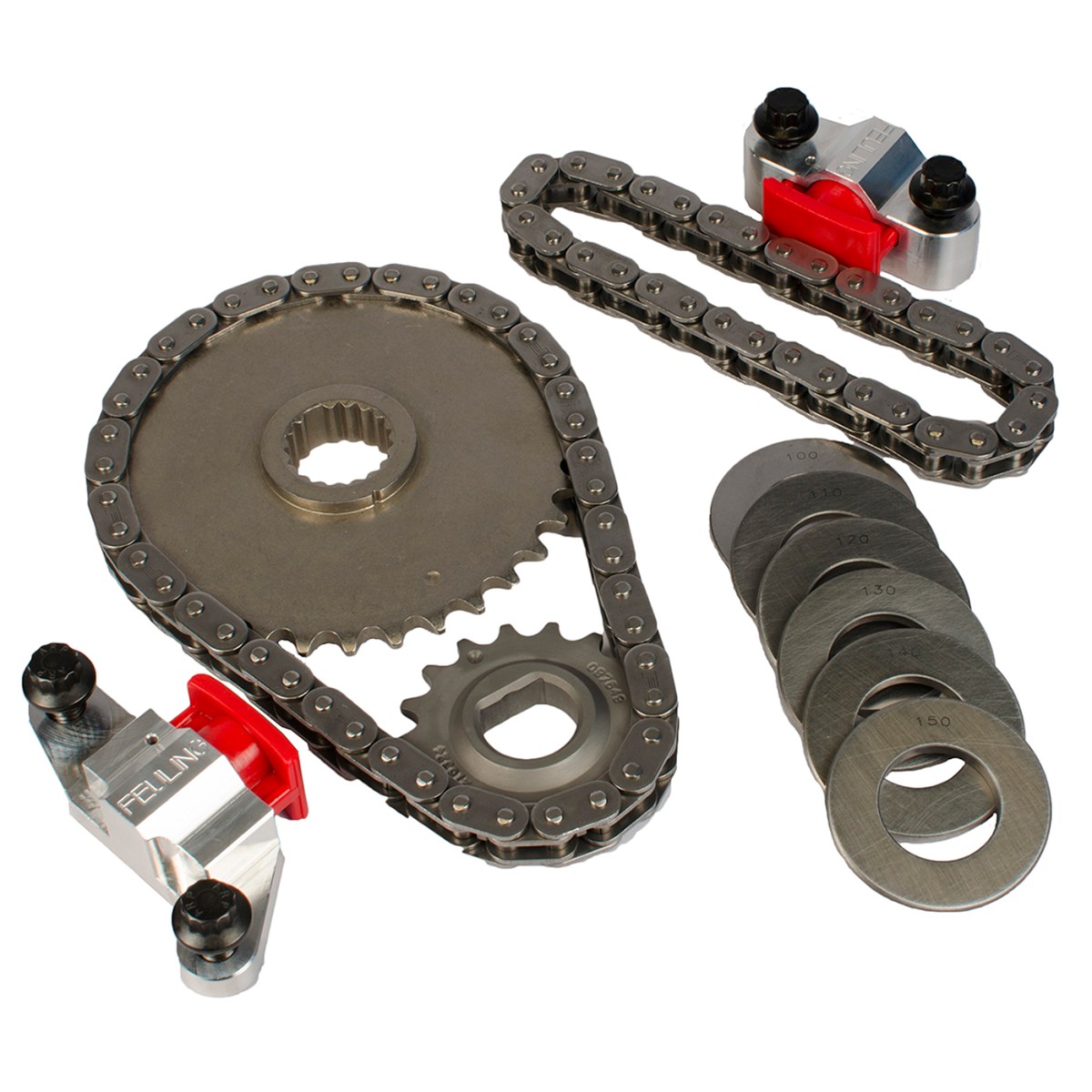

Feuling Part # 8080 Includes the following FEULING components
1 -# 8061 Outer chain (HD #25675-06)
1 -# 8060 Inner chain (HD #25683-06)
1 -# 1091 Outer crank sprocket 17 tooth (HD #25673-06)
1- # 1092 Outer cam sprocket 34 tooth (HD #25728-06)
1 -# 8075 Outer hydraulic tensioner unit (HD #39968-06)
1 -# 8076 Inner hydraulic tensioner unit (HD #39969-06)
1 -# 8041 Spacer Kit Includes the following spacers
1-Thrust washer - front cam .100 (HD #-# 25729-06)
1- Spacer (.110 for cam alignment; use as required) (HD #25731-06)
1 -Spacer (.120 for cam alignment; use as required) (HD #25734-06)
1 -Spacer (.130 for cam alignment; use as required) (HD #25736-06)
1 -Spacer (.140 for cam alignment; use as required) (HD #25737-06)
1 -Spacer (.150 for cam alignment; use as required) (HD #25738-06)
FITS:
For use as stock replacements on 07-17 Twincam (Including 06 dyna). Also works with conversion camshafts when updating 01-06 Delphi ignition system & carbureted engines w/o cam position sensor to the hydraulic cam chain tensioner system. Requires an 07-17 style oiling system - See FEULING oiling systems
COUNTRY OF ORIGIN:
USA
KIT SKU'S:
1091, 1092, 8041, 8060, 8061, 8077
