These kits allow engine builders to install or replace the hydraulic cam chain tensioners on stock 07-17 Twin Cams (including 06 Dyna), 99-06 Feuling camchest kits using conversion cams or conversion camplates. Will also work with a combination of factory, SE, Delkron or S&S oiling systems.
For use on 99-01 Magneti Marelli equipped ignition system and 99-00 carbureted Twin Cam engines w/cam position sensor, stock style splined camshafts and Conversion Camplate which allows use of hydraulic tensioner system
Kits #8081 & #8082 are designed to work with:
FEULING conversion camplate oiling systems: OE+ #7086 (0932-0094), HP+ # 7076 (0932-0071), RS #7077 (0932-0072)
¹ Will NOT work on keyway camshafts
² See conversion style camshafts Feuling #1015, 1016, 1017, 1018, 1019 (Drag #s: 0925-0671, 0925-0606, 0925-0607, 0925-0608, 0925-0672)

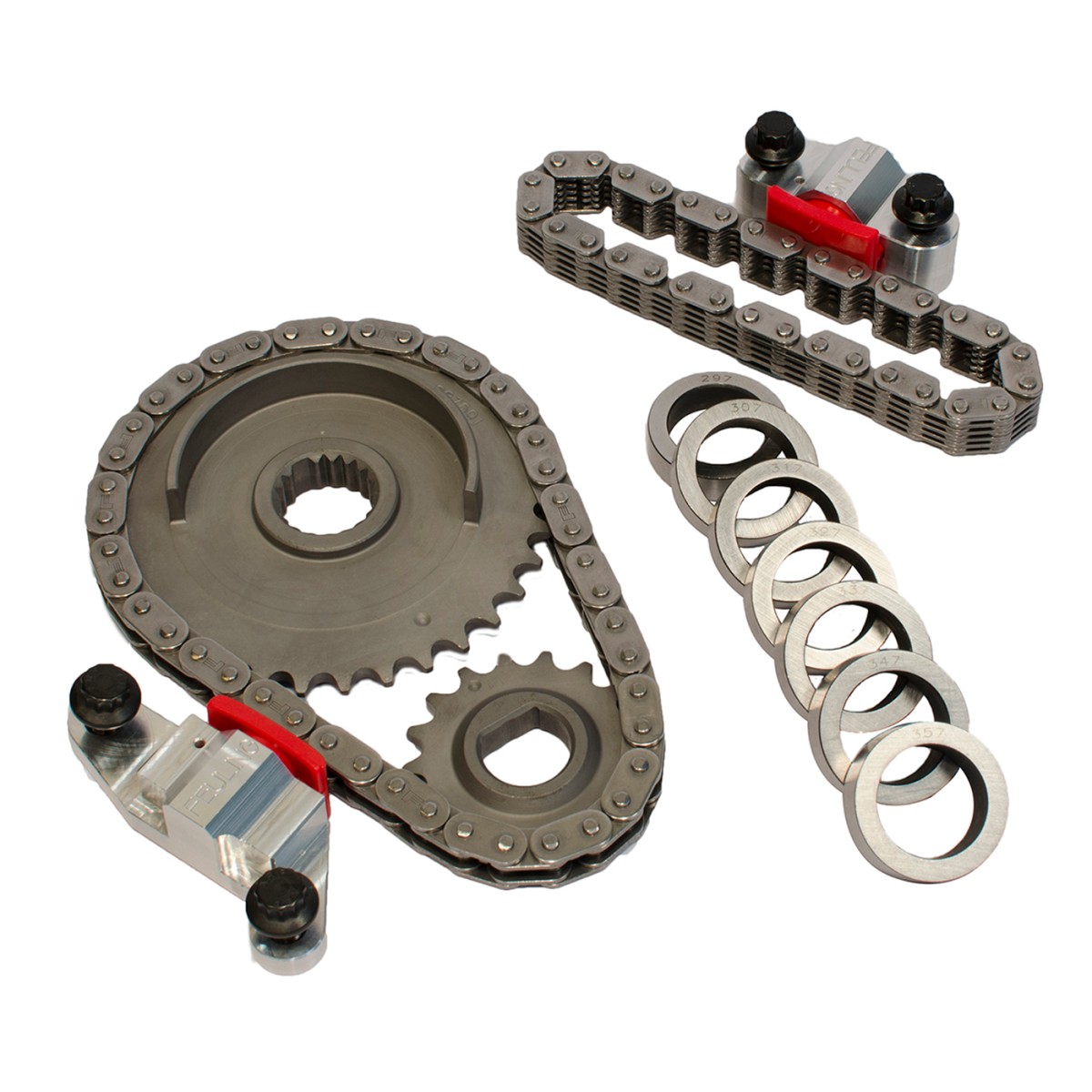

Feuling Part #8082 Includes the following FEULING components
1 -# 8061 Outer chain New style (HD #25675-06)
1- # 8062 Inner chain Old Style (HD # 25607-99)
1 -# 1091 Outer crank sprocket 17 tooth (HD #25673-06)
1- # 1094 Outer cam sprocket 34 tooth *Special sprocket with timing tab
1 - # 8075 Outer hydraulic tensioner unit (HD #39968-06)
1 - # 8076 Inner hydraulic tensioner unit (HD # 39969-06)
1 - #8040 Cam spacer kit, thicknesses: 0.297, 0.307, 0.317, 0.327, 0.337, 0.347, 0.357. (HD #25285-08)
FITS:
For use on 99-01 Magneti Marelli equipped ignition system and 99-00 carbureted Twin Cam engines w/cam position sensor, stock style splined camshafts and Conversion Camplate which allows use of hydraulic tensioner system
COUNTRY OF ORIGIN:
USA
KIT SKU'S:
1091, 1094, 8040, 8061, 8062, 8077
Disclaimer: Qualified Manufacturer Declared Replacement Part means any aftermarket part intended to replace an original equipment emissions related part and which is functionally identical to the original equipment part in all respects which in any way affect emissions (including durability), or a consolidated part, that has been evaluated and declared by the manufacturer to meet this definition and carry this categorization and designation label. This manufacturer has declared in writing that it has documentation, based upon sound engineering judgment, indicating the replacement part does not reduce the effectiveness of any required emission control device and it does not cause the modified vehicle/engine/equipment to exceed applicable emissions standards for that make/model/year fitment(s) advertised.
