These kits allow engine builders to update early style mechanical cam chain tensioner Twin Cam® engines to the late style hydraulic cam chain tensioner systems while mixing and matching components. Weather using a FEULING® camchest kit with conversion camshafts, FEULING® conversion camplate oiling system with stock style 99-06 camshafts and or conversion camshafts with a combination of factory, SE®, Delkron® or S&S® oiling systems, these kits offer endless combinations.
For use with conversion camshafts when updating a 99-01 Magneti Marelli ignition system model engine to the hydraulic cam chain tensioner system. Requires an 07-17 style oiling system
Kits #8080 & #8083 are designed to work with:
FEULING® conversion camchest kits: FEULING # 7220, 7224, 7221, 7222, 7225, 7223 (Drag # 0925-0678, 0925-0680 0925-0679, 0925-0733, 0925-0732)
FEULING® conversion camshafts: Feuling #1015, 1016, 1017, 1018, 1019 (Drag #s: 0925-0671, 0925-0606, 0925-0607, 0925-0608, 0925-0672)
FEULING® oiling systems: OE+ #7084, HP+ #7074, RS #7075 (Drag # 0932-0093, 0932-0029, 0932-0030).

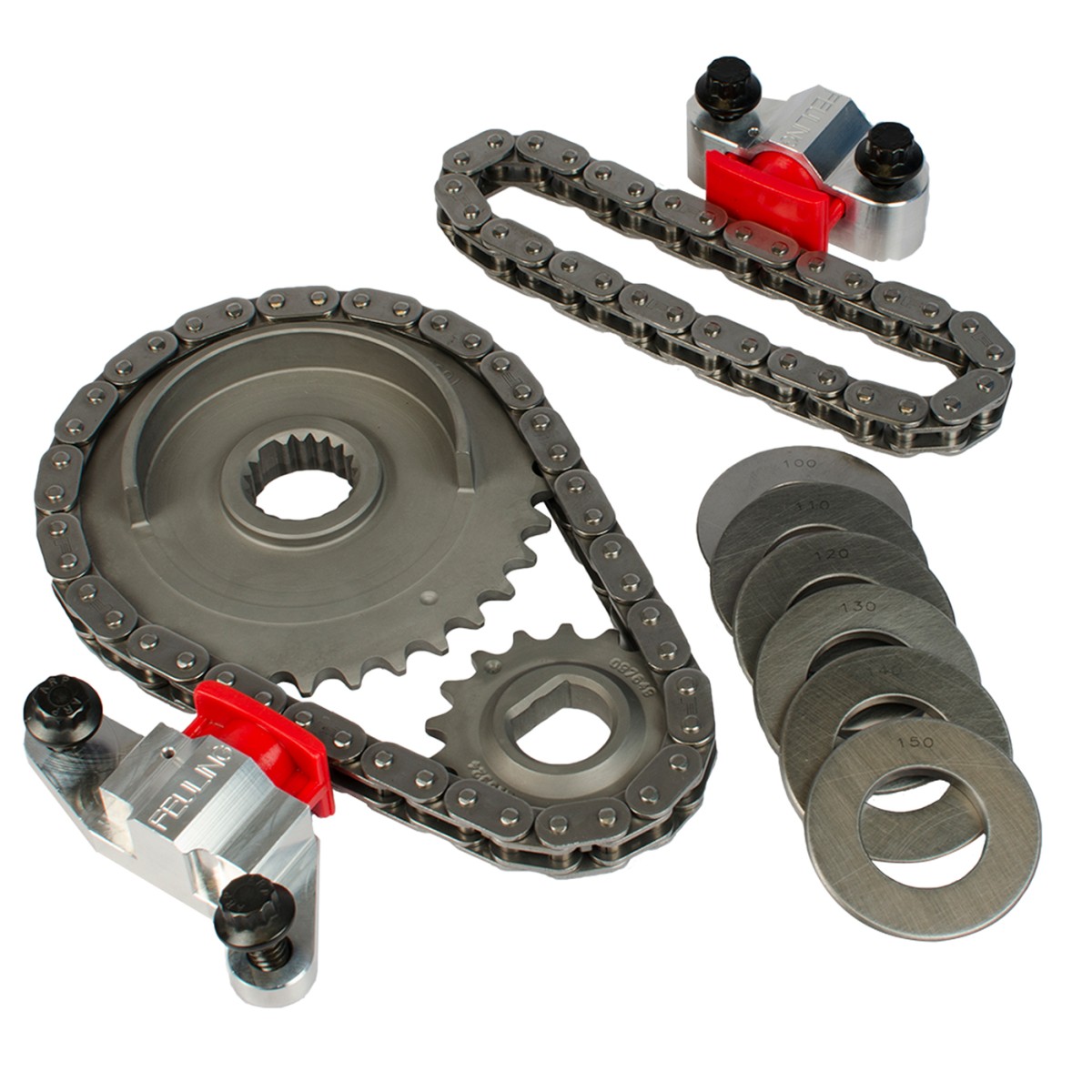

Feuling Part # 8083 Includes the following FEULING® components
1 -# 8061 Outer chain (HD #25675-06)
1 -# 8060 Inner chain (HD #25683-06)
1 -# 1091 Outer crank sprocket 17 tooth (HD #25673-06)
1- # 216015 Andrews Outer cam sprocket 34 tooth *Special sprocket with timing tab
1 -# 8075 Outer hydraulic tensioner unit (HD #39968-06)
1 -# 8076 Inner hydraulic tensioner unit (HD #39969-06)
1 -# 8041 Spacer Kit Includes the following spacers
1-Thrust washer - front cam .100 (HD #-# 25729-06)
1- Spacer (.110 for cam alignment; use as required) (HD #25731-06)
1 -Spacer (.120 for cam alignment; use as required) (HD #25734-06)
1 -Spacer (.130 for cam alignment; use as required) (HD #25736-06)
1 -Spacer (.140 for cam alignment; use as required) (HD #25737-06)
1 -Spacer (.150 for cam alignment; use as required) (HD #25738-06)
FITS:
For use with conversion camshafts when updating a 99-01 Magneti Marelli ignition system model engine to the hydraulic cam chain tensioner system. Requires an 07-17 style oiling system
KIT SKU'S:
1091, 1094, 8041, 8060, 8061, 8077
