MILWAUKEE EIGHT HP+ CAM KIT

405 Chain Drive Cam, HP+ Lifters, Install kit

$499.95
In stock
1440

405 REAPER M8 HP+ Camshaft kit

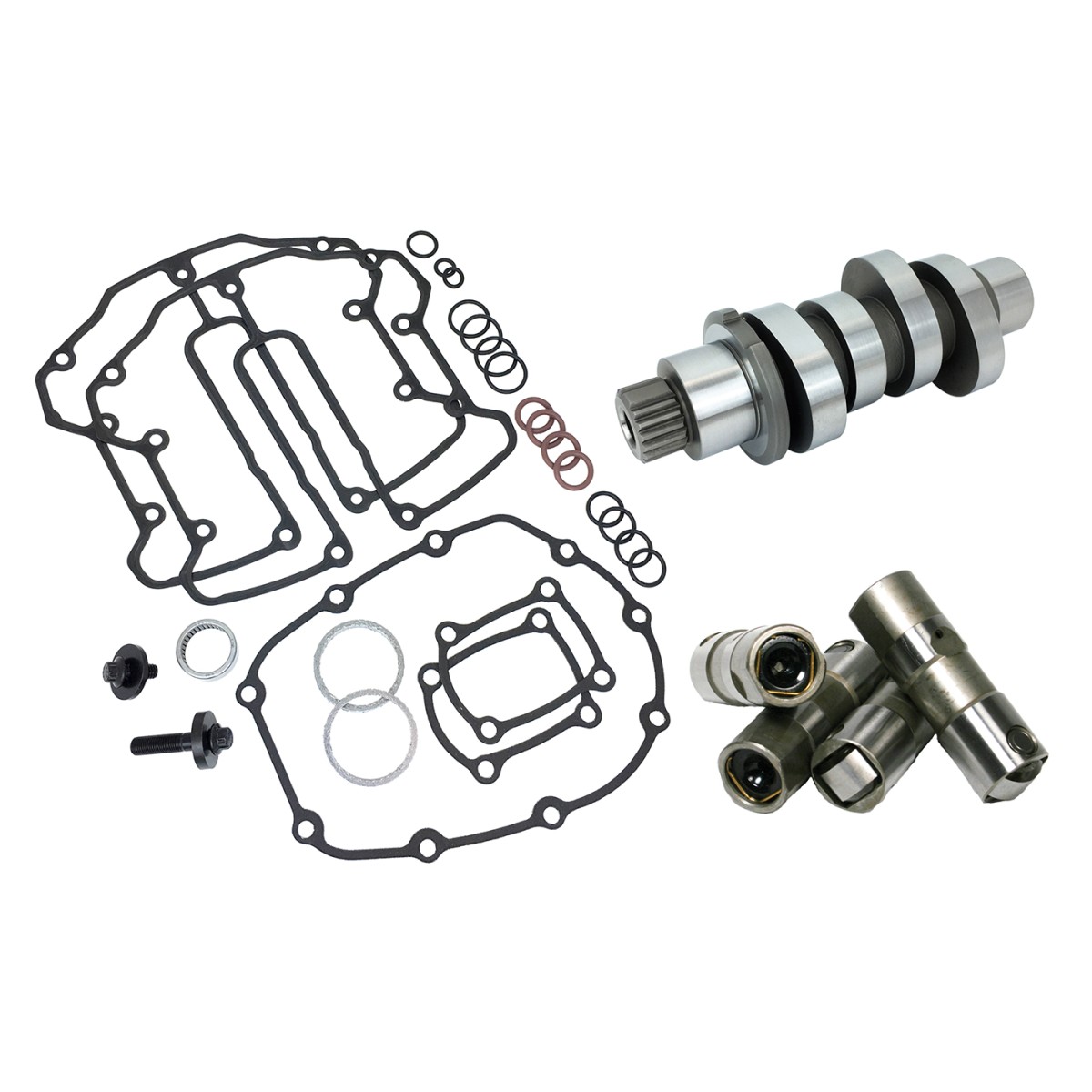

  • FEULING camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ 0.165 wall one piece pushrods - see # 4087

    Feuling fastener kit #3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

    HP+ kits come with HP+ lifters and RACE SERIES kits come with RACE SERIES lifters


    405 CAM - A workhorse, producing a wide powerband increasing torque and HP throughout the entire RPM range when compared to stock. Direct bolt in replacement for Milwaukee Eight engines, can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or complete exhaust system and a high flow air cleaner. Note Feuling recommends using free flowing mufflers with smaller cores for best lower RPM power and pull.

    Cam Part # 1340 RPM range 1,700 - 5,700. Grind: 405

    Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
    Intake .395 4 ATDC 24 ABDC 200 .068 103
    Exhaust .405 36 BBDC 11 BTDC 205 .049 108
    RPM range: 1,700 - 5,700 Grind: 405 Overlap: 7

    *Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

    DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES

    Feuling does not recommend tuning beyond stock emissions standards.


    TECH TIP FOR USING 1 PIECE PUSHRODS:
    1.) Remove gas tank, spark plug wires from plugs, left side spark plugs, fuel injector plug ins, compression release plug ins etc.
    2.) Remove front top engine mount, from frame first then cylinder heads
    3.) Remove exhaust
    4.) Remove oil line oil cooled models small catch tray on top of trans cover, wad of rags in the front to catch oil
    5.) Remove cam cover, rotate engine to timing marks
    6.) Remove top rocker covers, rocker arms, pushrods, pushrod tubes, lifter covers


    FITS:

    Milwaukee Eight 17-22, HP+ 405 CAM KIT - chain drive


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1340, 2030, 4000

    Disclaimer: Qualified Manufacturer Declared 49-State Federal Emissions Compliant Part (Not legal for sale or use in California) means any aftermarket part intended to replace an original equipment emissions-related part and that meets all EPA emission regulations by installing the element of design in all emissions-related respects to the certified configuration of the vehicle, engine, or piece of equipment. This manufacturer has declared in writing that it has fully documented the emissions testing of an appropriate test vehicle, engine, or piece of equipment that had been identically altered and that the part meets all applicable emissions standards for that make/model/year fitment(s) advertised.

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-1175
    Parts Canada Development Co 0925-1175
    Parts Europe 0925-1175
