MILWAUKEE EIGHT HP+ CAM KIT

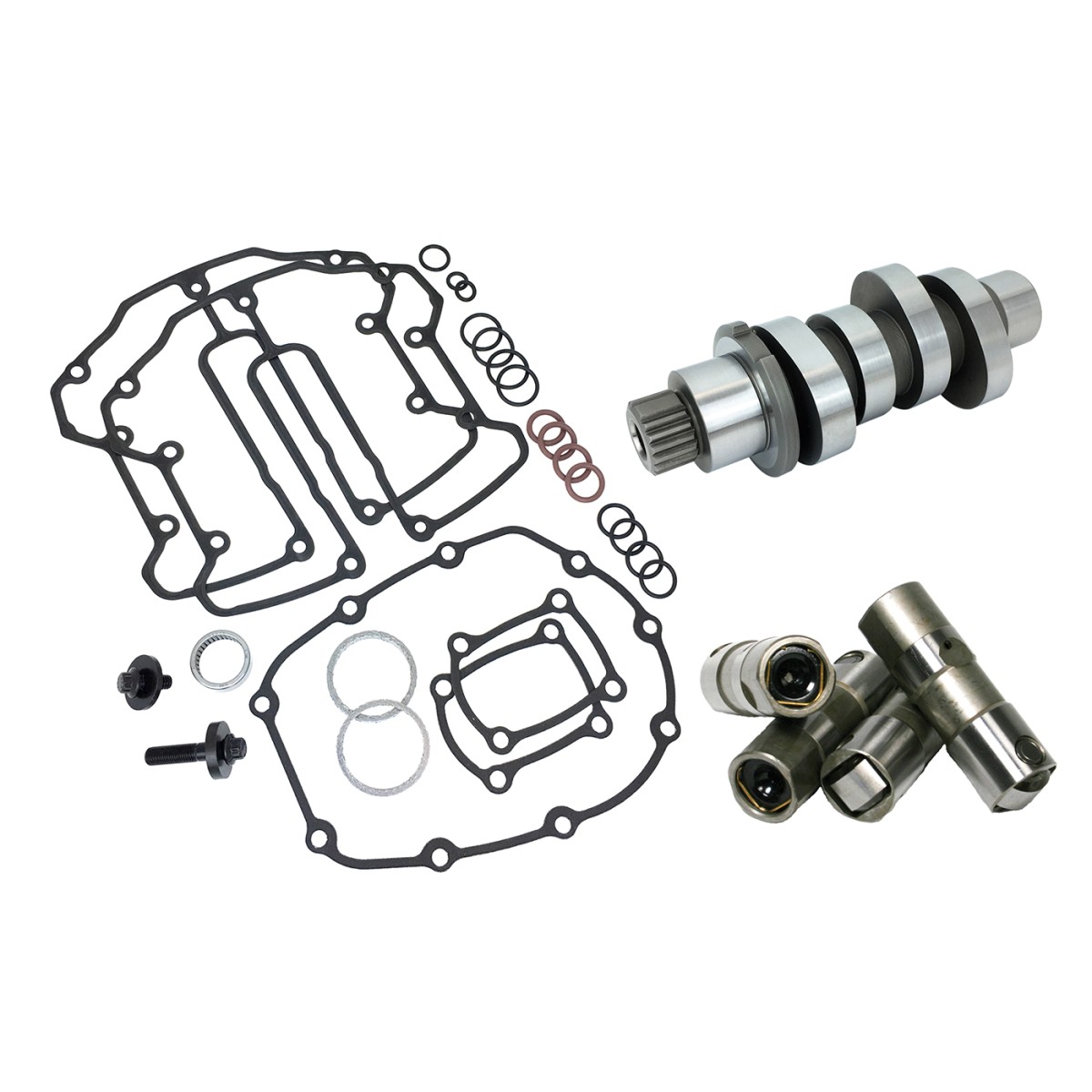

465 Chain Drive Cam, HP+ Lifters, Install kit

$519.95
In stock
1443

465 REAPER M8 HP+ Camshaft kit

  • FEULING camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ 0.165 wall one piece pushrods - see # 4087

    Feuling fastener kit #3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

    HP+ kits come with HP+ lifters and RACE SERIES kits come with RACE SERIES lifters

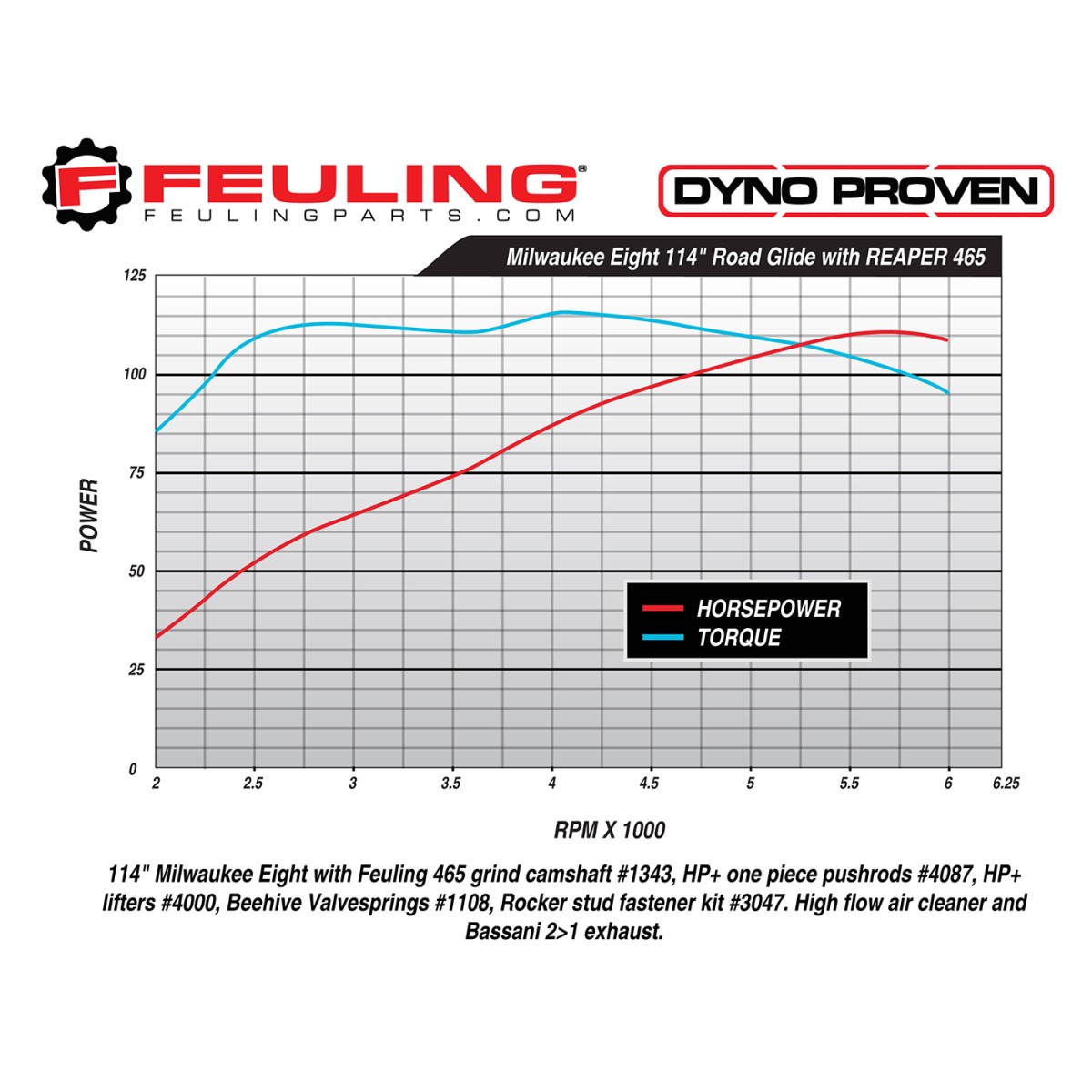

    465 CAM - The 465 Reaper is an accelerator, producing solid bottom end performance with substantial gains above 2,800 RPM when compared to stock. This direct bolt in replacement for Milwaukee Eight engines can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or performance exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107. This cam will also respond well with increased bore and or compression.

    Cam Part # 1343 RPM range 1,850 - 5,950. Grind: 465

    Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
    Intake .445 4 BTDC 23 ABDC 207 .100 99.5
    Exhaust .465 50 BBDC 6 ATDC 236 .100 112
    RPM range: 1,850 - 5,950 Grind: 465 Overlap: 10

    *Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio


    DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES

    Feuling does not recommend tuning beyond stock emissions standards.


    FITS:

    Milwaukee Eight 17-24 Except VVT, HP+ 465 CAM KIT - chain drive


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1343, 2030, 4000

    Disclaimer: Qualified Manufacturer Declared 49-State Federal Emissions Compliant Part (Not legal for sale or use in California) means any aftermarket part intended to replace an original equipment emissions-related part and that meets all EPA emission regulations by installing the element of design in all emissions-related respects to the certified configuration of the vehicle, engine, or piece of equipment. This manufacturer has declared in writing that it has fully documented the emissions testing of an appropriate test vehicle, engine, or piece of equipment that had been identically altered and that the part meets all applicable emissions standards for that make/model/year fitment(s) advertised.

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-1176
    Neo Factory 021773
    Parts Canada Development Co 0925-1176
    Parts Europe 0925-1176
