Eliminate pushrod flex, reduce valve-train harmonics and increase valve lift

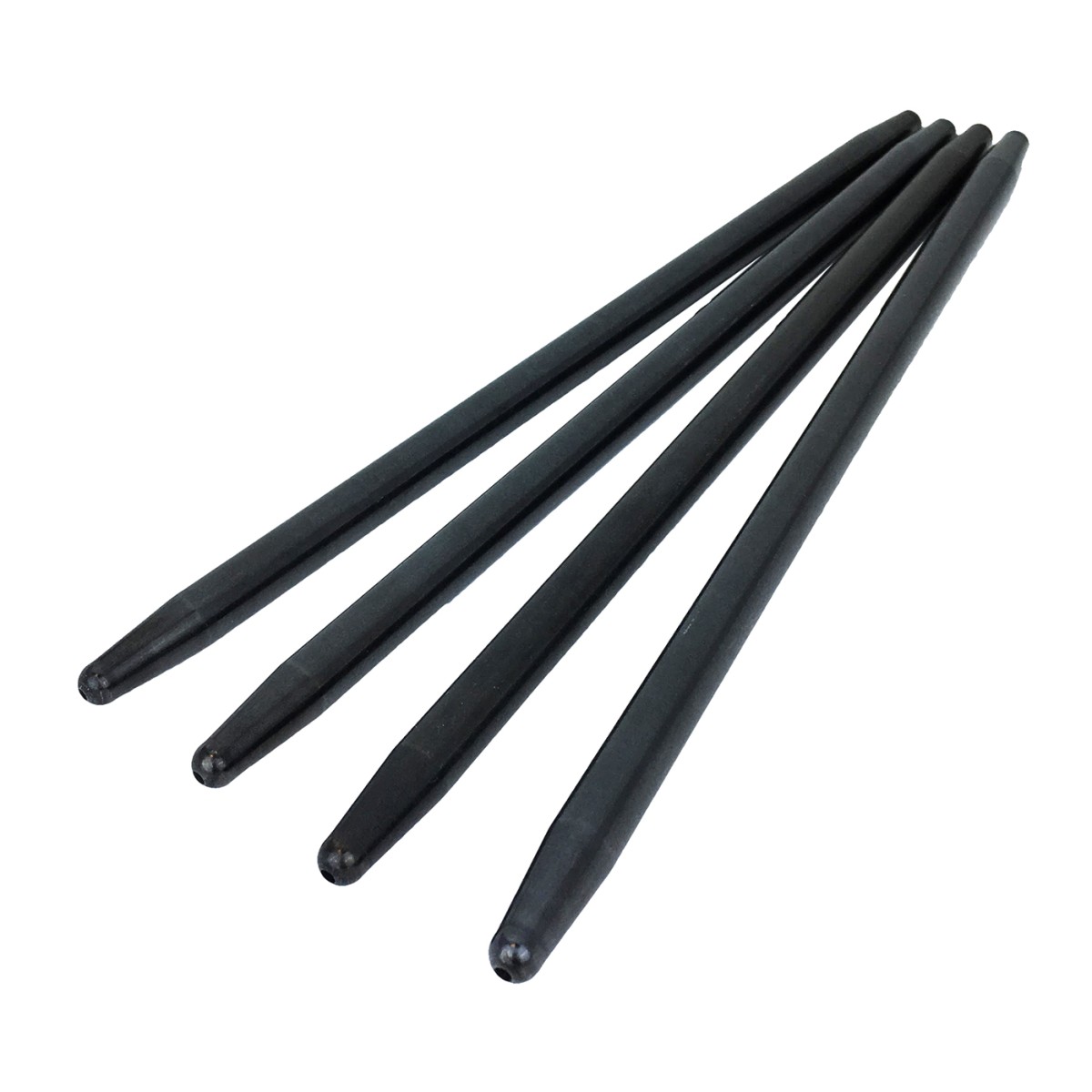

Fixed Length 4130 Chrome moly one piece pushrods with swedged formed ends. Heavy duty 7/16" diameter tube with 0.165" wall thickness, precision concentricity, heat treated with a black oxide finish. Intake and Exhaust length pushrods are stock replacement lengths and designed to work with the factory base circle camshaft dimensions. These pushrods work with all Feuling®, stock and SE® Milwaukee Eight camshafts.
Note: If using a camshaft other than Feuling, Stock or SE, please contact your camshaft manufacture to verify if the base circle is stock sized or modified.
Due to the unstable nature of this 4 valve engine design with 1 rocker arm activating 2 valvesprings Feuling® highly recommends running one piece pushrods over quick install adjustable rods to maintain maximum cam/valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues.
Quick install pushrods are said to be easier to use, however they cannot compare to a solid pushrod for strength and durability
#4086 HP+® 0.165" Wall. -0.040" shorter for engines with decked cylinder heads and running thinner head gaskets. Note the factory head gasket is 0.050" thick and the SE and majority of aftermarket head gaskets are 0.040" thick, aftermarket 0.030" head gaskets are also available.
TECH TIP FOR USING 1 PIECE PUSHRODS:
1.) Remove gas tank, spark plug wires from plugs, left side spark plugs, fuel injector plug ins, compression release plug ins etc.
2.) Remove voltage regulator bracket bolts qty. 2
3.) Remove front top engine mount, from frame first then cylinder heads
4.) Remove exhaust
5.) Remove oil line, 'oil cooled models' use a small catch tray on top of trans cover, wad of rags in the front to catch oil
6.) Remove cam cover, rotate engine to timing marks
7.) Remove top rocker covers, rocker arms, pushrods, pushrod tubes, lifter covers
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disclaimer:
“Qualified Manufacturer Declared Replacement Part” means any aftermarket part intended to replace an original equipment emissions related part and which is functionally identical to the original equipment part in all respects which in any way affect emissions (including durability), or a consolidated part, that has been evaluated and declared by the manufacturer to meet this definition and carry this categorization and designation label. This manufacturer has declared in writing that it has documentation, based upon sound engineering judgment, indicating the replacement part does not reduce the effectiveness of any required emission control device and it does not cause the modified vehicle/engine/equipment to exceed applicable emissions standards for that make/model/year fitment(s) advertised.
| Year |
Make |
Model |
| 2017-2024 |
Harley-Davidson |
Tri Glide Ultra Classic FLHTCUTG |
| 2017-2023 |
Harley-Davidson |
Street Glide Special FLHXS |
| 2017-2024 |
Harley-Davidson |
Street Glide EFI FLHX |
| 2017-2024 |
Harley-Davidson |
Road King Special FLHRXS |
| 2017-2024 |
Harley-Davidson |
Road King Police FLHP |
| 2017-2022 |
Harley-Davidson |
Road King EFI FLHR |
| 2017-2019 |
Harley-Davidson |
Road Glide Ultra FLTRU |
| 2017-2023 |
Harley-Davidson |
Road Glide Special FLTRXS |
| 2017-2024 |
Harley-Davidson |
Road Glide Custom FLTRX |
| 2017-2024 |
Harley-Davidson |
Freewheeler FLRT |
| 2017-2019 |
Harley-Davidson |
Electra Glide Ultra Limited Low FLHTKL |
| 2017-2024 |
Harley-Davidson |
Electra Glide Ultra Limited FLHTK |
| 2017-2019 |
Harley-Davidson |
Electra Glide Ultra Classic EFI FLHTCUI |
| 2017-2024 |
Harley-Davidson |
Electra Glide Police FLHTPI |
| 2017-2024 |
Harley-Davidson |
CVO Street Glide FLHXSE |
| 2017-2021 |
Harley-Davidson |
CVO Electra Glide Ultra Limited FLHTKSE |
| 2018-2024 |
Harley-Davidson |
Softail Street Bob FXBB |
| 2018-2021 |
Harley-Davidson |
Softail Sport Glide FLSB |
| 2018-2021 |
Harley-Davidson |
Softail Slim FLSL |
| 2018-2020 |
Harley-Davidson |
Softail Low Rider FXLR |
| 2018-2021 |
Harley-Davidson |
Softail Heritage Classic FLHC |
| 2018-2024 |
Harley-Davidson |
Softail Heritage Classic 114 FLHCS |
| 2018-2019 |
Harley-Davidson |
Softail Fat Boy FLFB |
| 2018-2024 |
Harley-Davidson |
Softail Fat Boy 114 FLFBS |
| 2018-2019 |
Harley-Davidson |
Softail Fat Bob FXFB |
| 2018-2023 |
Harley-Davidson |
Softail Fat Bob 114 FXFBS |
| 2018-2020 |
Harley-Davidson |
Softail Deluxe FLDE |
| 2018-2024 |
Harley-Davidson |
Softail Breakout FXBR |
| 2018-2020 |
Harley-Davidson |
Softail Breakout 114 FXBRS |
| 2018-2024 |
Harley-Davidson |
CVO Road Glide Custom FLTRXSE |
| 2019-2020 |
Harley-Davidson |
FXDR 114 |
| 2019-2022 |
Harley-Davidson |
Electra Glide Standard EFI FLHTI |
| 2020-2024 |
Harley-Davidson |
Softail Standard FXST |
| 2020-2024 |
Harley-Davidson |
Softail Low Rider S FXLRS |
| 2020-2024 |
Harley-Davidson |
Road Glide Limited FLTRK |
| 2020-2022 |
Harley-Davidson |
CVO Tri Glide FLHTCUTGSE |
| 2021 |
Harley-Davidson |
Electra Glide Revival |
| 2022-2023 |
Harley-Davidson |
Street Glide ST FLHXST |
| 2022-2024 |
Harley-Davidson |
Softail Low Rider ST FXLRST |
| 2022 |
Harley-Davidson |
Softail Low Rider El Diablo FXRST |
| 2022-2023 |
Harley-Davidson |
Road Glide ST FLTRXST |
| 2022-2023 |
Harley-Davidson |
CVO Road Glide Limited |
| 2023 |
Harley-Davidson |
Electra Glide Highway King FLHFB |
| 2024 |
Harley-Davidson |
Road Glide Police FLTRXP |
| 2024 |
Harley-Davidson |
Hydra-Glide Revival |
| 2024 |
Harley-Davidson |
CVO Road Glide ST FLTRXSTSE |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
General Safety Warning
Failure to follow manufacturer's recommendations and requirements can cause product failure resulting in serious injury or death. While effort has been taken in collecting accurate fitment information, LeMans Corporation accepts no liability for loss or damage resulting from errors or omissions. If you believe any of the information provided is erroneous, please email someemail@website.com
