RACE SERIES HYDRAULIC CAM CHAIN TENSIONER CONVERSION KITS - Factory Style Camshafts

T/C 99-00, Incl 01 Touring, Fits original 00-06 style cams

$1,595.95
In stock
7193

RACE SERIES CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, T/C 99-00, Including 01 Touring, W/cam sensor

  • FEULING RACE SERIES CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, Twin Cam 99-00, Including 01 Touring, W/cam sensor. (Magneti Marelli Ignition Systems)

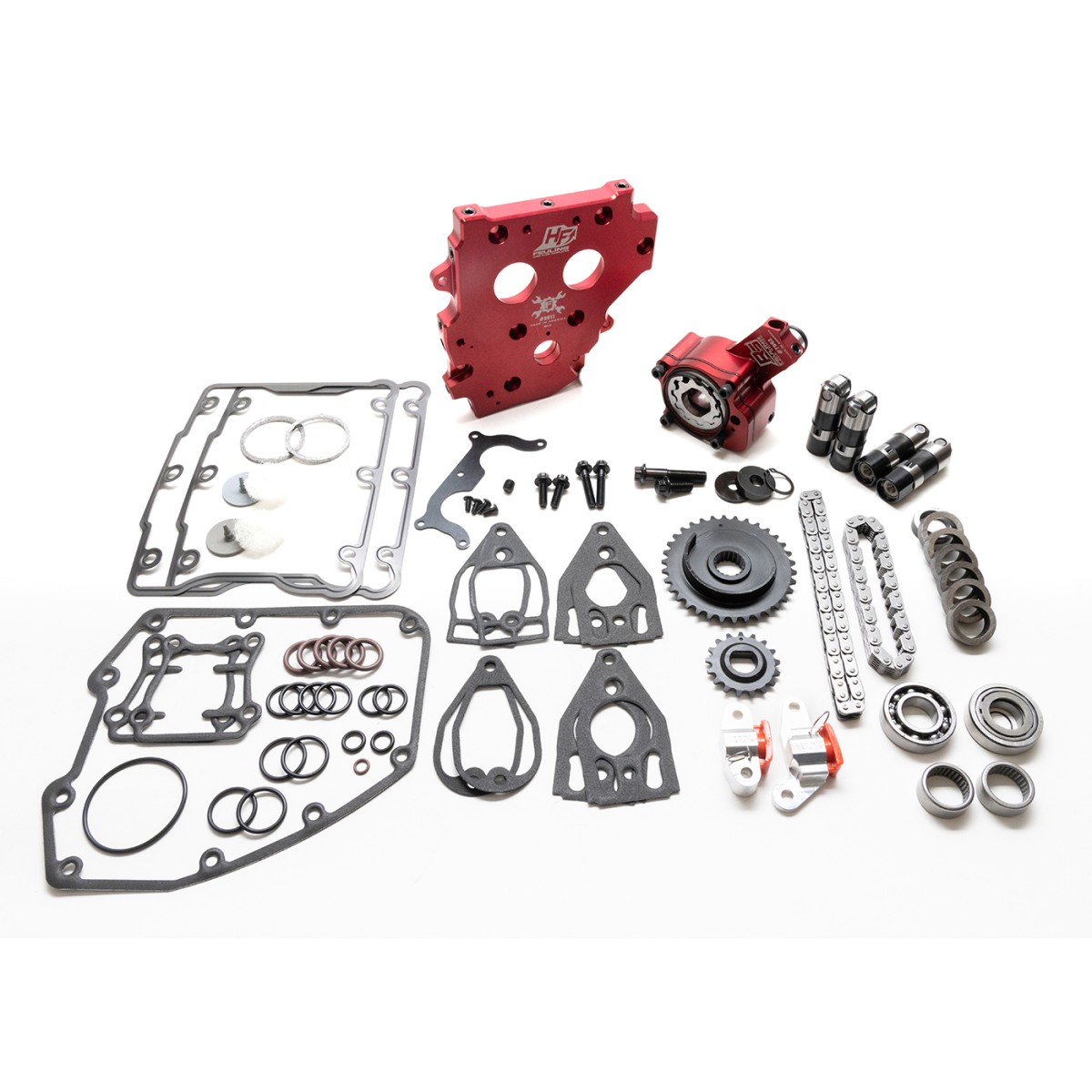

    Kit includes the needed components to upgrade early 99-06 style mechanical spring tensioner cam chain drive systems to the late 07-17 hydraulic cam chain drive system using a hybrid camplate. This kit includes a FEULING RACE SERIES billet oil pump, High Flow camplate, RACE SERIES full travel lifters, FEULINGS billet hydraulic tensioner housings, tensioner pads, cam chains, sprockets, sprocket alignment spacers, TIMKEN/FEULING bearings, needed gaskets, O-rings, ARP cam and crank hardware, Loctite and moly lube.

    Note: Rocker box gasket kit included so the factory one piece pushrods can be reused

    For 99-01 Magneti Marelli equipped ignition system engines requiring the timing tab on the 34 tooth rear camshaft sprocket.

    Kit is designed to run the factory 00-06 style splined chain drive camshafts with the included Feuling sprockets which converts to the late roller style outer chain. This kit can be used on early 99 keyway camshafts however it will require use of existing sprockets, silent outer chain, cam spacer and a OE #8099 bearing on the rear camshaft.

    See Feuling #3200 for replacement billet rocker box breather assemblies and or #4072 and #4073 if looking to upgrade to heavy duty one piece pushrods.


    FITS:

    Twin Cam 99-00, Including 01 Touring (Magneti Marelli Ignition, cam sensor), Kit designed for factory 00-06 style camshafts


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1091, 1094, 2055, 2076, 2078, 3042, 4050, 7062, 8001, 8011, 8040, 8061, 8062, 8077

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-1507
    Neo Factory 033714
    Parts Canada Development Co 0925-1507
    Parts Europe 0925-1507
