RACE SERIES HYDRAULIC CAM CHAIN TENSIONER CONVERSION KITS - Factory Style Camshafts

T/C 01-06, exc 01 Touring & 06 Dyna, Fits original 00-06 style cams

$1,595.95
Out Of stock
7194

RACE SERIES CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, T/C 01-06, except 01 Touring and 06 Dyna engines, W/O cam sensor

  • FEULING RACE SERIES CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, Twin Cam 01-06, except 01 Touring and 06 Dyna engines, W/O cam sensor. (Delphi Ignition Systems)

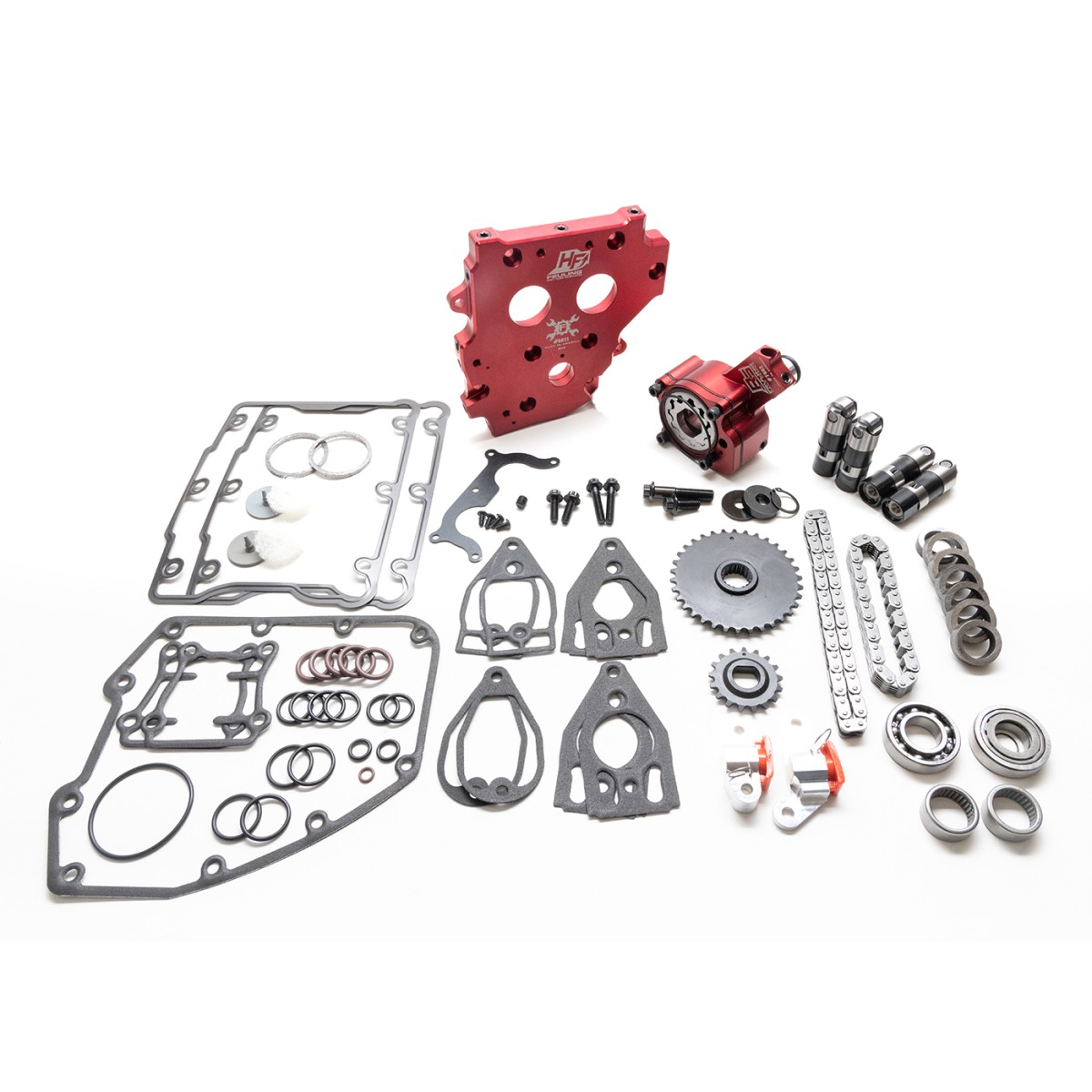

    Kit includes the needed components to upgrade early 99-06 style mechanical spring tensioners cam chain drive systems to the late 07-17 hydraulic cam chain drive system using a hybrid camplate. This kit include a FEULING RACE SERIES billet oil pump, High Flow camplate, RACE SERIES full travel Lifters, FEULINGS billet hydraulic tensioner housings, tensioner pads, cam chains, sprockets, sprocket alignment spacers, TIMKEN/FEULING bearings, needed gaskets, O-rings, ARP cam and crank hardware, Loctite and moly lube.

    Note: Rocker box gasket kit included so the factory one piece pushrods can be reused

    For Delphi equipped ignition system engines running the 34 tooth rear cam sprocket without the timing tab.

    Kit designed to run the factory 00-06 style splined chain drive camshafts - Will NOT work on keyway camshafts or with conversion camshafts. Will NOT work on keyway camshafts or with conversion camshafts

    See Feuling #3200 for replacement billet rocker box breather assemblies and or #4072 and #4073 if looking to upgrade to heavy duty one piece pushrods.


    FITS:

    Twin Cam 01-06, except 01 Touring and 06 Dyna engines (Delphi Ignition, no cam sensor), Kit designed for factory 00-06 style camshafts


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1091, 1092, 2055, 2076, 2078, 3042, 4050, 7062, 8001, 8011, 8040, 8061, 8062, 8077

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-1508
    Neo Factory 033715
    Parts Canada Development Co 0925-1508
    Parts Europe 0925-1508
