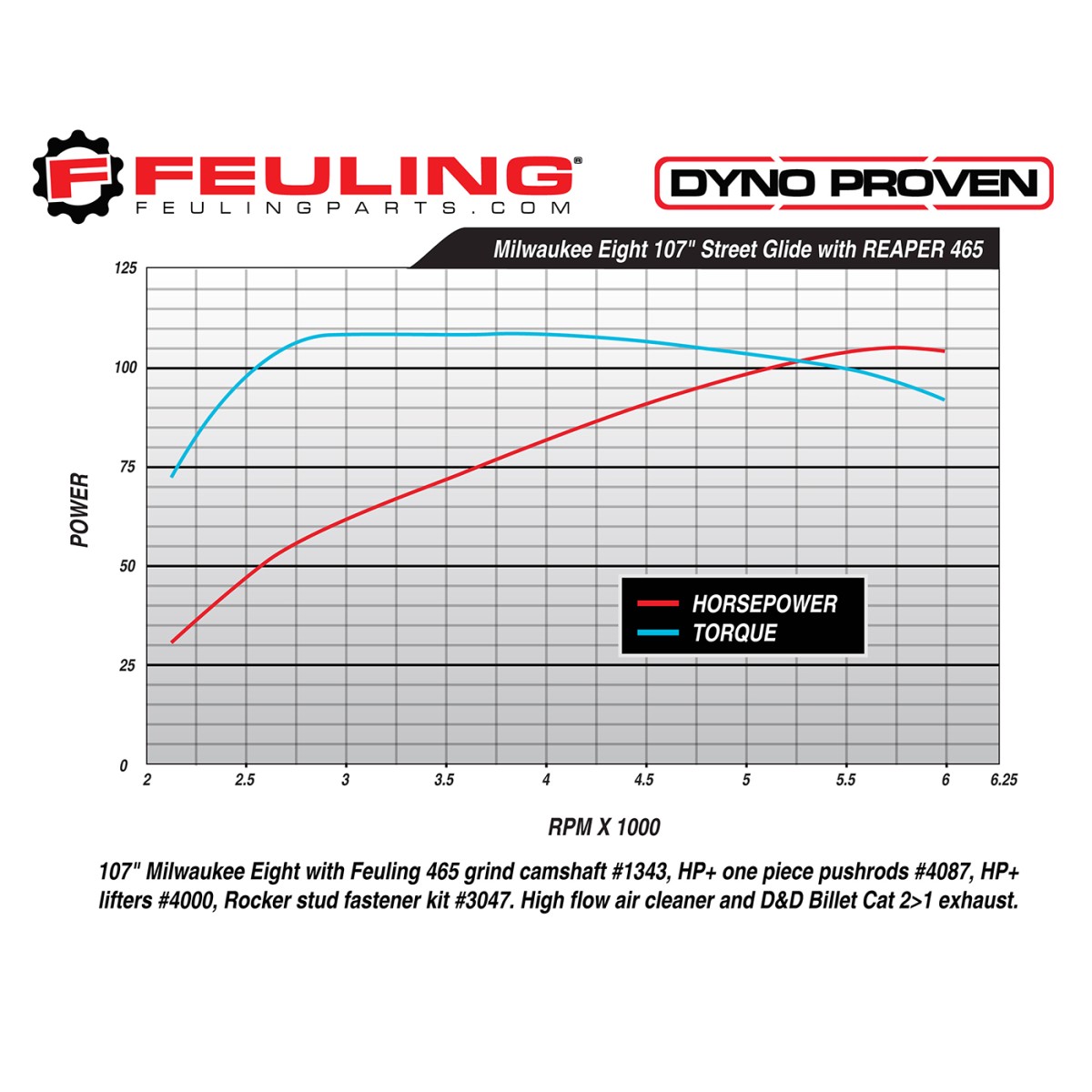

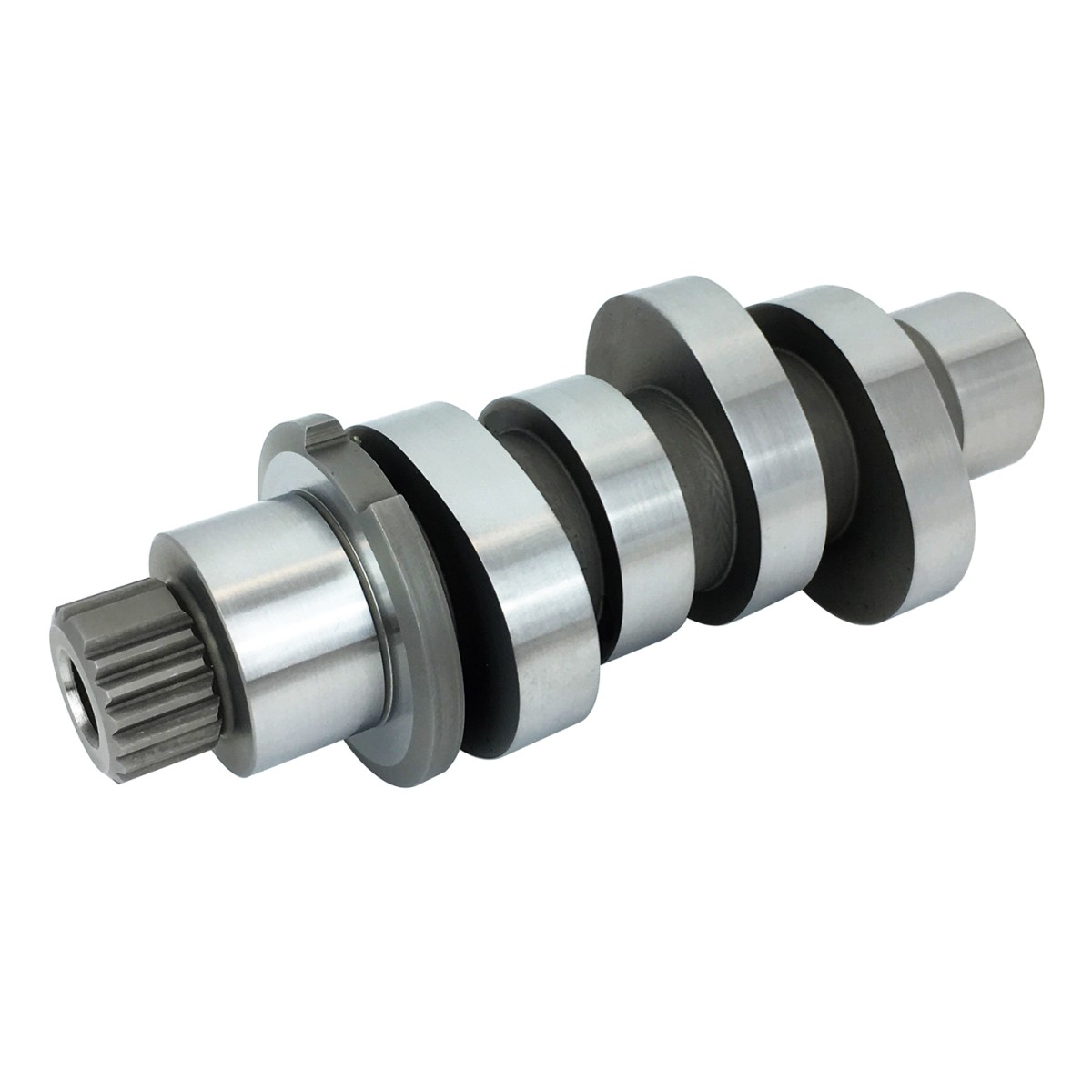

465 CAM - The 465 Reaper is an accelerator, producing solid bottom end performance with substantial gains above 2,800 RPM when compared to stock. This direct bolt in replacement for Milwaukee Eight engines can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or performance exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107. This cam will also respond well with increased bore and or compression. RPM range 1,850 - 5,950. Grind: 465
Intake: .445 Valve Lift, 4 Open, 23 Close, 207 Duration @ 50, .100 lift @ TDC, 99.5 Lobe Centerline
Exhaust: .465 Valve Lift, 50 Open, 6 Close, 236 Duration @ 50, .100 lift @ TDC, 112 Lobe Centerline
Overlap: 10
*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
EXEMPT FROM EMISSIONS TAMPERING REGULATIONS UNDER CARB EO# D-881-1, 50 State legal CARB compliant: CARB EO# D-881-1
Feuling does not recommend tuning beyond stock emissions standards.
FITS:
Milwaukee Eight 17 - 24 Except VVT, 465 grind cam, 445 Intake lift, 465 Exhaust lift, direct bolt in replacement chain drive, can be used with factory valve springs, pushrods and lifters. RPM 1,850-5,950
COUNTRY OF ORIGIN:
USA
Disclaimer: 50 State legal CARB compliant: CARB EO# D-881-1
CARB E.O. means the specified Executive Order issued by CARB. An Executive Order constitutes an exemption by CARB from CA Vehicle Code 27156 and 38391, for sale of the part number for the make/model/ year fitment(s) specified in the Executive Order.
Disclaimer: Exempt from emissions tampering regulations under CARB EO# D-881 for all 2017-2023 M-Eight engine models.
